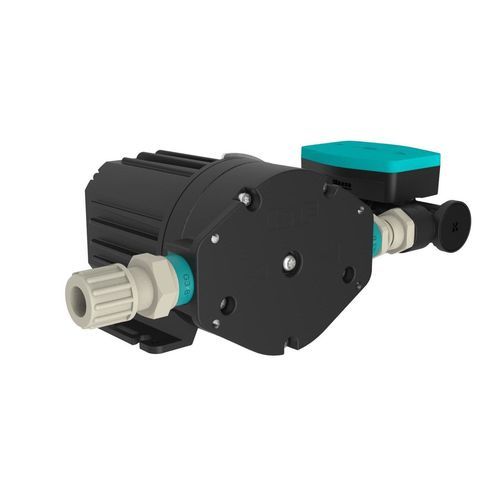

Laboratory pump FMS-FC 1.400

electricmembranefor liquids

Description
KNF diaphragm liquid pumps are compact diaphragm pumps designed to transfer neutral and corrosive liquids without contaminating the medium. Constructed from chemically resistant materials, the FMS-FC 1.400 operates dry-running, is self-priming and requires no routine maintenance. Multiple motor and hydraulic connection options enable integration into industrial systems.

Key features

• Diaphragm liquid pump design
• Chemically resistant materials — suitable for neutral and corrosive liquids
• Compact footprint with efficient performance
• Dry-running capable
• Self-priming
• Maintenance-free operation
• Low pulsation and controllable flow
• Multiple motor and hydraulic connection options
• Max. flow: 3.4 l/min
• Max. pressure: 6 bar (rel.)
• Max. suction: 3 mH2O

Technical specifications

• Brand: KNF
• Model: FMS-FC 1.400
• Type: Diaphragm (membrane) liquid pump
• Valve material options: FFKM / FKM
• Diaphragm material options: PTFE-coated
• Pump head material options: PP
• Motor type options: Brushless DC motor (BLDC)
• Operation: Dry-running, self-priming, maintenance-free

Typical applications

• Analytical instrumentation
• Chemical process handling
• Cleaning and disinfection systems
• Food and beverage processing
• Fuel cell systems
• Inkjet printing
• Laboratory equipment
• Medical technology
• Semiconductor manufacturing
