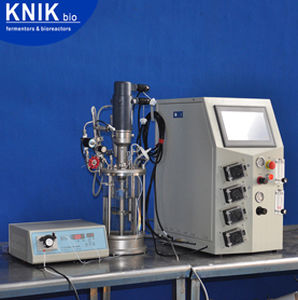

Laboratory bioreactor GC series

for microbial fermentationcoolingautoclavable

5L Mini mechanical stirring with methyl alcohol detection fermentor bioreactor Mini bioreactors system Models 0.5GC 1GC 2GC 3GC 5GC 7GC 10GC working Volume 0.2-0.4L 0.5- 0.7 L 1--1.4 Liter 1.5-2L 2.5-3.5L 3.5-5 L 5- 7 l Load Proportion 65-80% of total volume, 70% optimum Vessel Material glass body and stainless steel lid The high ratio: 2:1 Mixing method: Magnetic Drive from bottom, without mechanical seal Sterilization method: off-site sterilization Autoclavable Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computer through the USB interface, the data Stirring system high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1000rpm±1%,The height of the stirring oar can be adjusted, too. Temperature detection and control Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~65℃±0.1℃，temperature probe(US) pH detection and control 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump DO detection and control 0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland) Feed control fermenter uses peristaltic pump (Longer) to add meterials Antifoam control Tested by sencor and added antifoamer by peristaltic pump Intake control (air) :manual control rotameter
