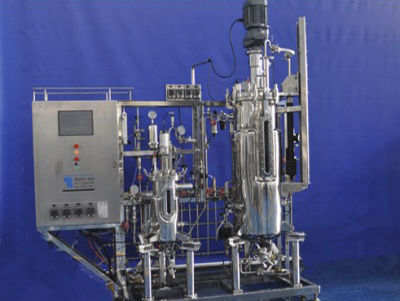

Laboratory bioreactor BLBIO-XSJ-XSJ

for microbial fermentation

Multi-couplet stainless steel fermenter BLBIO-XSJ-XSJ multi-stage fermentation systems can be used independently of each tank can also be used simultaneously conjoined; reliable plumbing shift can be sterilized separately; floorstanding / Bench Rack optional, BLBIO-A type, B, C-type, D-type control system Optional: separate control cabinet or centralized control; can be a combination of various fermenters needed for amplification from the lab to test flask fermentation studies of transition, but also to for small-scale production Various combinations 5L-30L / 5L-50L / 10L-100L / 10L-50L / 30L-100L / 100L-1000L / 50L-5000L, etc.: Scale Nominal volume: 15L, 150L; Diameter height ratio: 1: 2-3; liquid filling factor: 70% 15 l 150 l tank: The main material is stainless steel 316L tank, the tank no dead ends; special sampling with fermentation tanks, discharge valve, transplanted pipeline. Using a large tank level perspective endoscopic observation, 12V safety depends on light, with temperature, PH, DO, foaming, liquid interface, vaccination mouth, feeding the mouth, and a number of alternate ports, all welds sturdy neat appearance . Tank: Design pressure 0.3Mpa jacket: design pressure 0.3Mpa, optimized diversion designed to improve the uniformity of the exchange efficiency and tank temperature
