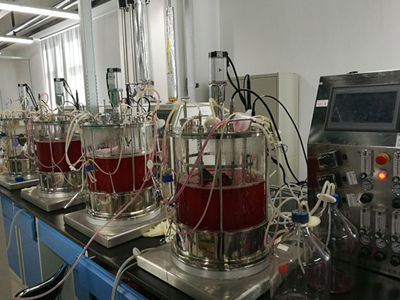

Laboratory bioreactor

for cell cultureautoclavable

5L 7L 10L 30L 40L cell bioreactor (glass) Vessel system Autoclavable bioreactor vessel,5L (3 - 3.5 liters working volume) and 7 liter (4-5 liters working volume) and 10 liter (5-7 liters working volume)total capacity Lid Stainless steel 316L With sterile and pressure proof ports bioreactor Vessel must be a Jacketed Vessel having with the head plate of SS316L. It should have the Temperature Control via circulation of Hot / Cold Water in the Jacket through an inbuilt Thermo circulator unit (working temperature range 8ºC - 80ºC above coolant temperature) The system must be complete to measure and control pH, DO, stirrer speed (20-300rpm), foam control & temperature. Probes : Impeller Speed, temperature, pH, redox, pO2, level or Foam, gas mixture Gas Supplement : Air, O2, N2, CO2 Agitation Mechanical seal, shaft, 2 height adjustable six – blade stirrer, removable baffle cage Aeration Auto cleavable sterile filter, check valve, connection piece, aeration tube with ring sparger Required air pressure approx, 1.5 bar Ventilation Reflux cooler, connection piece, auto cleavable sterile filter Temperature Circuit Connected to glass double jackets, all four temperature circuits connected by central supply and drain lines. Probes Autoclavable temperature probe Pt100 incl. connecting cable Autoclavable pH-gel-electrode incl. connecting cable Autoclavable pO2-probe incl. connecting cable Autoclavable height adjustable antifoam-probe incl. connecting cable Sampling System Autoclavable sampling system Inoculum Cup for silicone diaphragm Measurement of Controls Integrated in stainless steel trunking
