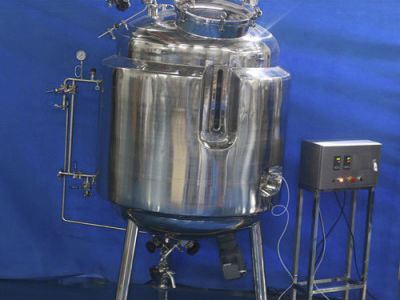

Previous Next Stainless Steel Bottle Feeding Stainless Steel Bottle Feeding 300L mixing tank technical description Vessel TTL volume：300L D:H rate： 1：1.5； Working volume：70%-75% The vessel material is stainless steel 316L. The internal surface of vessel is polished with Ra ≤0.4um 300L vessel thickness：6mm，300L jacket thickness：4mm。 Vessel design pressure: 0.1-0.35Mpa Jacket design pressure: 0.4 Mpa, Design temperature: 150 ℃ Provide pressure vessel certificate, insulation layer Vessel function: with special discharge valve for fermentation liquid discharge and transferring. Adopt large sight glass for liquid level observation, 12V safety sight light. Vessel interfaces for intake sterilization filter, exhaust condenser, feed port, cleaning port, discharge port, pressure gauge port. Stirring Mixing method: upper mechanical mixing system, single mechanical seal, 316L stainless steel special mixing shaft material, precision processing, ideal dynamic balance performance, good rigidity, long-term use without deformation; the entire system is safe and stable and long life Stirring speed: 150rpm; accuracy: ± 1rpm; Stirring power：1.5KW Automatic control
