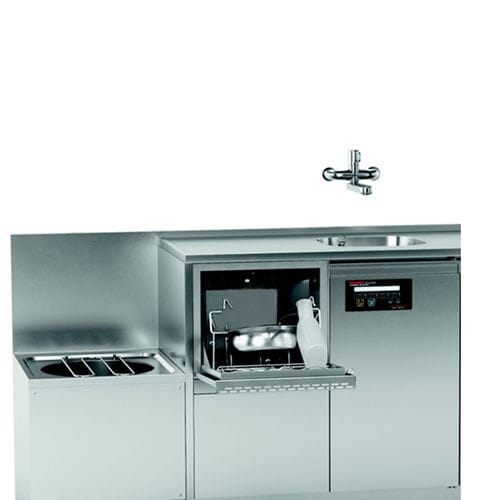

KODRA U-ec1 – Compact Bedpan Washer for Integrated Care Stations
The KODRA U-ec1 is a compact washer-disinfector designed for integration into care units with existing slop sinks or furniture. It delivers high-level hygiene performance in a minimal footprint – ideal for renovations and space-saving installations.
The U-ec1 cleans and disinfects bedpans, urine bottles, and commode buckets in full compliance with DIN EN ISO 15883-3. The A0 value is freely adjustable from 60 to 3000 and is clearly displayed after each cycle, ensuring maximum hygiene safety.
Its Power-Clean nozzle system with strategically positioned injectors guarantees thorough cleaning – even with stubborn residues such as creams or stool. The device is pressure-independent and uses water efficiently.
The chamber and all steam-bearing components are made from premium stainless steel (V2A/V4A) to ensure durability and corrosion resistance. An integrated softening system enables spotless rinsing and energy-optimized drying.
The intuitive KOTRONIK control system offers full-text operation, cycle memory for up to 32,000 processes, and optional connection to building control systems. With its compact size and modular flexibility, the U-ec1 is ideal for new builds and modern care environments.
Key Features:
– Thermal disinfection, A0 value 60–3000
– Holds 1 bedpan + 2 urine bottles
– 230 V, 3.2 kW, water ½", wastewater DN 100
– Stainless steel housing and chamber
– No slop sink – designed for integrated installations
Made in Germany. Class IIa medical device.
