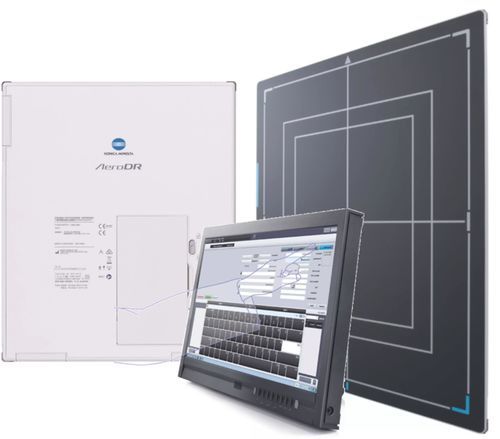

Veterinary radiography flat panel detector AeroDR NS

waterproofportable14 x 17

Product overview

• Retrofit kit to convert analog X-ray systems to digital for veterinary clinics
• Digital flat panel detectors (14x17)
• Improved diagnostic capabilities and workflow
• Reduced maintenance and space requirements

VET Retrofit
Konica Minolta provides retrofit solutions tailored for veterinary practices. The kits enable fast conversion of analog radiography equipment to a digital acquisition chain, allowing clinics to take advantage of digital image storage, sharing and processing to streamline daily operations.

Features
Digital Images
Digital acquisition delivers immediate image availability, simplified archiving and secure image sharing for consultation or referral.

Increasing Workflow
Digital capture and the integrated console accelerate exam throughput, shorten procedure times and support higher patient volume in the clinic.

Increasing Diagnostic Capabilities
Advanced image processing algorithms improve image detail and contrast. Console tools let users adjust visualization to facilitate diagnosis and measurements.

ImagePilot software

• Veterinary user interface
• All-in-one console for acquisition and review
• Acquisition, workstation and storage functions
• Mini-PACS features
• Veterinary orthopedic measurement tools
• Backup and data management tools

Selection of Flat Panel Detector

• AeroDR NS panel — economical option with AeroStorage support
• AeroDR3 1417 SL — glass-free design, reduced drop risk, workflow-enhancing features, antibacterial exterior (Carbon SMS), lightweight, fast charging, IPX6 water protection

Specifications (table summary)
AeroDR NS
Scintillator: CsI
Pixel size: 150 μm
DQE: 40% (1 lp/mm)
Pixel matrix: 2304 x 2800 (14x17)
Battery performance: 210 images / 5.9 h
Charging time (empty to full): 3 hrs
Weight: 3.6 kg (with battery)

AeroDR3 SL 1417
Scintillator: Glass-free + CsI
Pixel size: 100 μm (option: 200 μm)
DQE: 59% (1 lp/mm) / 72% (0 lp/mm)
Pixel matrix: 3488 x 4256 (14x17)
Exterior surface: Carbon SMS — antibacterial, long lasting
Battery performance: 147 images / 4.1 h
Surface load capacity (distributed): 400 kg
Durability: MIL-STD-810G drop tested
Water resistance: IPX6
Charging time (empty to full): 15 mins
Weight: 1.8 kg (with battery)

Technical specifications

• Product name: AeroDR NS / AeroDR3 1417 SL (veterinary retrofit solutions)
• Purpose: Retrofit kits to convert analog imaging to digital for veterinary clinics
• Key benefits: digital images, increased diagnostic capabilities, increased workflow, reduced maintenance cost, space saving
• ImagePilot features: veterinary interface; integrated console; acquisition, workstation, storage; mini-PACS; orthopedic measurement tools; backup functions
• Available detectors: AeroDR NS (economical, AeroStorage) and AeroDR3 1417 SL (glass-free, CsI, antibacterial exterior, IPX6)
• AeroDR NS core specs: CsI scintillator; 150 μm pixel size; 2304 x 2800 matrix; 210 images / 5.9 h battery; 3 h charge; 3.6 kg (with battery)
• AeroDR3 SL 1417 core specs: Glass-free + CsI scintillator; 100 μm (option 200 μm); 3488 x 4256 matrix; 147 images / 4.1 h battery; 15 min charge; 1.8 kg (with battery); Carbon SMS antibacterial exterior; MIL-STD-810G drop tested; IPX6 water resistance
