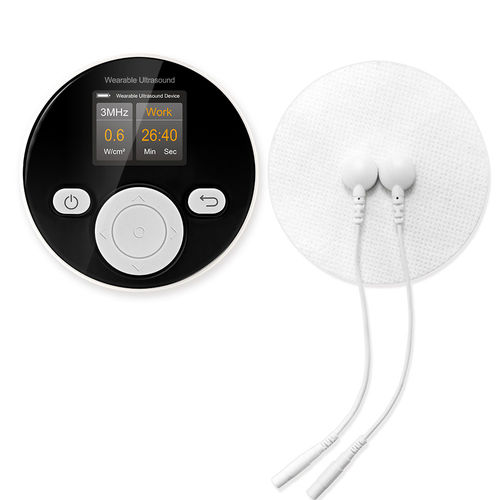

Ultrasound diathermy unit KM300

wearableTENSEMS

Wearable Therapeutic Ultrasound KM300 KM300 uses ultrasound therapy for the relief of pain and muscle spasms. It was developed as a next generation wearable ultrasound system which transforms conventional therapeutic ultrasound technology into a small and portable ultrasound therapy unit. It is designed to work along with the human body and maximize the safe and effective delivery of a therapeutic effect. INDICATIONS FOR USE • The KM300 is intended to apply ultrasonic energy to generate deep heat within body tissues for the treatment of selected medical conditions such as: Pain • Muscle spasms • Joint contractures WEARABLE THERAPEUTIC ULTRASOUND • Effective pain relief ultrasound therapy • Potential alternative to surgery and medications • Easy to use, does not require medical personnel to apply • No messy Ultrasound Gel Description Targeted therapeutic ultrasound that uniquely generates and delivers localized, low frequency,low intensity therapeutic ultrasound waves through a self-adhering patch, placed on or next to the treated area. KM300 helps treat the following conditions: • Chronic and acute pain • Neck and back pain • Knee, elbow, shoulder and other joint pain • Tendon and muscle pain • Sport related injuries • Arthritis and tendon inflammation • Rheumatic pain • Pelvic pain - Pudendal Neuralgia, Abdominal Adhesions, Endometriosis, Interstitial Cystitis • Plantar fasciitis • Tennis elbow • Achilles tendonitis • Carpal tunnel syndrome. How to use The KM300 use should start gradually with the first and second treatments lasting 0.5 and 1 hours respectively during day time. Following treatments should be for 1-2 hours on a daily basis and may be done overnight . • Connect the actuator cable to the device socket. • Attach the actuator to the exposed adhesive, the wire aligned with the open notch. • Remove the rest of the protective liner from the patch. • Place and adhere the patch in the painful region • Turn the device ON. Technical parameters Ultrasonic operating frequency and accuracy (MHz) : 3MHz ± 20%. Transducer emission surface area (cm2) : 5 cm2. Effective radiation area and accuracy (cm2) : 6 cm2 ± 20%. Beam non-uniformity ratio and accuracy: BNR: < 5:1 ± 20%. Output mode :(continuous wave/AM wave) : continuous wave and non-continuous wave, variable duty cycle. Maximum beam intensity and accuracy (W/cm2) : 0.132W /cm² ± 20%. Maximum output power (rated output power) and accuracy (W) : 0.65W ± 20%. AM wave: not AM. Maximum temperature limit: 44℃. Product packaging list: 1 Unit; 1 electrode wire; 1 USB charging cable; 3 electrode pads; 1 User manual
