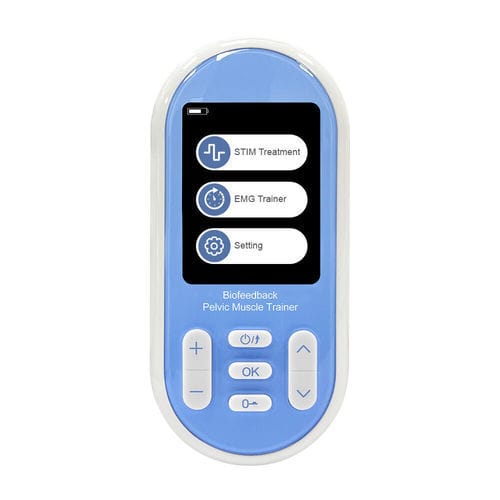

Pelvic floor rehabilitation system with pelvic electromyography KM525

ambulatory

Product overview
The KM525 is a biofeedback pelvic floor trainer combining EMG (surface electromyography) with neuromuscular electrical stimulation (STIM) to support pelvic floor rehabilitation and training. Designed for home or clinic use, the device assists patients in improving pelvic muscle control and supports management of stress, urge and mixed urinary incontinence in women. Visible improvements may occur within 2–12 weeks depending on protocol and adherence.

Key features

• Combined EMG biofeedback and low-frequency electrical STIM
• Four operation modules: STIM, EMG training, ETS (EMG-triggered stimulation), EMG Game
• 99 adjustable intensity levels for precise dosing
• 2.8-inch TFT display and configurable system parameters
• 900 mAh rechargeable lithium battery; compact, portable design
• Compatible with vaginal probes, rectal probes and electrode patches
• Multimedia interactive games to improve engagement and measurable progress

Operation modes
KM525 provides protocol-driven modules to guide rehabilitation and home training: STIM for electrical stimulation programs, EMG training for visual biofeedback, ETS to combine voluntary contraction with stimulation, and gamified EMG exercises for adherence.

STIM: Delivers low-frequency electrical currents to pelvic floor muscles, nerves and local vasculature to promote circulation and muscle rehabilitation. Includes 17 preset treatment programs and 1 customizable program (PC). Indications include stress urinary incontinence, urge urinary incontinence, mixed incontinence and support for pelvic floor rehabilitation.

EMG training: Real-time biofeedback measurement and training that enables patients to observe, measure and track muscle activation, improving voluntary control and neuromuscular coordination.

ETS treatment: EMG-triggered stimulation pairs voluntary contractions with timed stimulation: when a target EMG threshold is reached during the work phase, the device delivers stimulation to reinforce the contraction. Typical ETS session duration: 5–15 minutes.

EMG Game: Six interactive games translate EMG signals into gamified tasks to increase motivation and session adherence. Games target explosive power and endurance to diversify training and make progress measurable (scores, levels, timed tasks).

Programs
STIM:
P01 Urgent incontinence 1
P02 Urgent incontinence 2
P03 Stress urinary incontinence 1
P04 Stress urinary incontinence 2
P05 Stress urinary incontinence 3
P06 Mixed incontinence 1
P07 Sensory nerve regeneration
P08 Fecal incontinence
P09 Poor pelvic floor muscle
P10 Pelvic floor muscle injury
P11 Endurance training
P12 Cystocele / mild uterine prolapse
P13 Improve sexual sensitivity
P14 Pelvic floor pain
P15 Lack of sensitivity
P16 Pelvic muscle exercise
P17 Mixed incontinence 2
PC Custom

EMG Training:
1 EMG Work/Rest Training

ETS Treatment:
1 EMG Triggered Stimulation

EMG Games:
Game-Big Fish (explosive power)
Game-Angry Bird (explosive power)
Game-Shoot (explosive power)
Game-Race (endurance)
Game-Weightlifting (endurance)
Game-Golf (explosive power)

Package content

• 1 Main unit (KM525)
• 1 Vaginal probe
• 2 pairs electrode pads
• 1 Electrode wire (white)
• 1 REF wire (black)
• 1 Charging cable
• 1 User manual

Technical specifications

• Model: KM525
• Device type: EMG biofeedback + neuromuscular electrical stimulator
• Display: 2.8-inch TFT
• Battery: 900 mAh rechargeable lithium
• Intensity: 99 adjustable levels
• Operation modules: STIM, EMG training, ETS, EMG Game
• STIM presets: 17 fixed + 1 custom
• EMG Games: 6 interactive modes
• Typical ETS session: 5–15 minutes
• Accessories supported: vaginal probes, rectal probes, electrode patches
• Intended use: pelvic floor muscle strengthening/rehabilitation and support in management of stress, urge and mixed urinary incontinence in women
