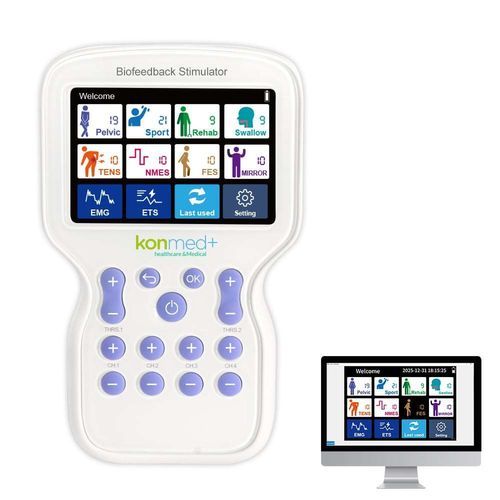

Electric stimulator KM580Pro

electro-stimulatorelectrical stimulation unithand-held

Product overview
The Konmed biofeedback neuromuscular stimulator KM580Pro applies neuromuscular electrical stimulation and EMG biofeedback for rehabilitation of sports-related dysfunction, dysphagia, post-stroke motor recovery, pelvic floor disorders and postpartum rehabilitation.

Key features

• PC‑compatible software for synchronized display and enhanced patient guidance.
• 3.5-inch full‑color capacitive touch‑screen.
• D.C. 7.4V, 1200mAh rechargeable lithium battery.
• Interactive interface with real‑time EMG graph, voice prompts, biofeedback games and training templates.
• 2‑channel EMG (biofeedback) combined with 4‑channel electrical stimulation.
• 2‑channel ETS (EMG‑triggered stimulation) with 4‑channel stimulation.
• Generation of pelvic floor EMG assessment reports and body‑surface EMG assessment reports.
• Pre‑set programmes covering incontinence, sports/muscle development, neuromuscular rehabilitation, pain relief (TENS) and swallow therapy.
• Automatic recording and queryable treatment records.
• Compatible accessories: >10 types of vaginal and rectal probes and multiple electrode pad options.

Indications for use
For EMG

• Retention and coordination of muscle activation.
• Provide indication of muscle force for control and maintenance of contractions.
• Relaxation training and muscle re‑education.
• Interactive EMG games for training strength, explosive power and speed.

For EMG‑triggered stimulation (ETS) and Mirror

• Post‑stroke rehabilitation through muscle re‑education.
• Reduction of muscle spasms and prevention/retardation of disuse atrophy.
• Increase local blood circulation and maintain or increase range of motion.
• Mirror therapy for left/right discrimination and motor relearning (copying non‑paralysed to paralysed side).

As a non‑implanted electrical continence device
The device provides external electrical stimulation and neuromuscular re‑education to rehabilitate weak muscles including pelvic floor muscles and to restore neuromuscular control in urinary continence treatment.

Product functions
The KM580Pro includes PC‑compatible software for on‑screen visualization of the biofeedback interface to support clinical guidance.

• EMG: two EMG test modes (standard pelvic floor and quick body‑surface assessment), Work & Rest training, five template trainings and six EMG games with graphical and voice feedback.
• ETS: detects myoelectric values, compares with preset thresholds and triggers stimulation when thresholds are reached; intended for weak skeletal muscle training and pelvic floor strengthening.
• STIM: outputs electrical stimulation by preset or user‑defined parameters for pelvic floor rehab, sports/muscle development, neuromuscular rehab, swallow therapy, TENS, NMES and FES.
• STIM programmes: 19 pre‑set pelvic floor modes; 21 sports modes; 9 neuromuscular modes; 10 swallow modes (pre‑set & custom); 10 TENS/pain relief modes (pre‑set & custom); 10 custom NMES and 10 custom FES modes. Multiphase operation allows EMG/ETS/STIM combination in one programme.

Records and accessories

• Treatment records are automatically saved and can be queried for review and tracking.
• Applicable accessories include more than 10 vaginal/rectal probe types and dozens of electrode pads.
• Manufacturer provides setup software file and supporting materials.

Specifications

• Model: KM580Pro
• Display: 3.5‑inch full‑color touch‑screen
• Battery: D.C. 7.4V, 1200mAh rechargeable lithium
• Channels: 2‑channel EMG (biofeedback) + 4‑channel stimulation; 2‑channel ETS with 4‑channel stimulation
• PC compatibility: compatible software for synchronized display
• Pre‑set stim modes: pelvic floor 19; sports 21; neuromuscular 9; swallow 10 (pre‑set & custom); TENS 10 (pre‑set & custom)
• Custom modes: 10 NMES; 10 FES
• Training features: EMG Work & Rest, 5 templates, 6 EMG games, Mirror therapy
• Data: treatment records automatically saved and queryable
• Accessories: supports >10 vaginal/rectal probes and multiple electrode pad options
