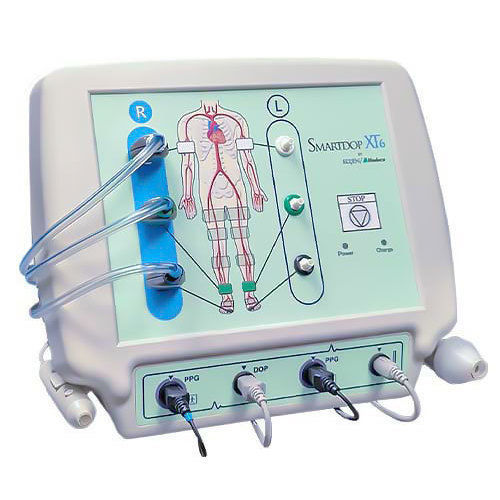

Table doppler Smartdop® XT6

with printerABITBI

Product Overview
The Smartdop® XT6 is a vascular ABI and PPG toe pressure Doppler system for noninvasive evaluation of peripheral vascular pathology. It performs Doppler and automatic testing, captures and stores data, and integrates with Smart-XT-Link6 software to produce PDF and DICOM® compatible files for export to EHR or PACS systems.

Features & Capabilities

• Vascular ABI / PPG testing with Doppler and automatic testing modes
• 6 inflation ports with dual-sided cuff inflation for simultaneous bilateral arterial studies
• Built-in pulse volume recording (PVR) capabilities
• Clear, easy-to-read reports and one-button start workflow
• Smart-XT-Link6 (Windows) creates PDF and DICOM® compatible files for EHR/PACS integration; optional PAUS 2.0 Modality Worklist available
• Integrated PPG probes and Doppler probe support for arterial and venous studies
• Optional foot temperature probe for skin temperature measurement
• Data capture, storage, waveform printing and export functions
• Financing options and trial/30-day evaluation available where offered

Testing Capabilities

• Doppler & Pulse Volume Arterial ABI and segmental studies
• Automatic arterial ABI & segmental studies
• PPG toe pressures and Toe-Brachial Index (TBI)
• PPG venous reflux testing
• Foot temperature measurement
• Custom screen options for expanded testing protocols

Indications for Use
The Smartdop® XT6 is intended for noninvasive evaluation of peripheral vascular pathology. It measures systolic pressures for Ankle‑Brachial Index (ABI), Toe‑Brachial Index (TBI), and assesses arterial and venous blood flow in extremities using cuffs, photoplethysmography (PPG) and/or Doppler probes. Data are captured, stored and may be printed or exported via Smart‑XT‑Link6.

Contraindications
Not intended for fetal applications and not for use inside the sterile field.

Cautions & Regulatory
Federal law (USA) restricts this device to sale by or on the order of a licensed healthcare practitioner. Rx only. Perform ultrasound testing prudently using the ALARA principle (As Low As Reasonably Achievable). The Smartdop® XT6 has not been evaluated for safety and compatibility in the MR environment and has not been tested for heating or migration in MR environments. Refer to the operation manual for complete indications, contraindications, cautions and warnings.

Specifications / Technical Details

• Model name: Smartdop® XT6
• Inflation ports: 6
• Cuff inflation: Dual-sided simultaneous bilateral inflation capability
• Testing modes: Automatic arterial ABI & segmental; Doppler ABI; PPG toe pressures/TBI; pulse volume recordings; venous reflux
• Probes: Integrated PPG probes; Doppler probe support
• Optional accessories: Foot temperature probe
• Software: Smart‑XT‑Link6 (Windows) — produces PDF and DICOM® compatible files; optional PAUS 2.0 Modality Worklist for automated data flow
• User interface: One-button start; easy-to-read reports; custom screen options
• Data handling: Capture, storage, waveform print, export to EHR/PACS
• Regulatory note: Rx-only device in USA
