laboratory microscope / education / organic / medical
MBL2000

{{requestButtons}}

Characteristics

  • Applications:

    laboratory, education, organic, medical, for environmental analysis

  • Type:

    optical

  • Ergonomics:

    binocular

  • Observation technique:

    phase contrast

Description

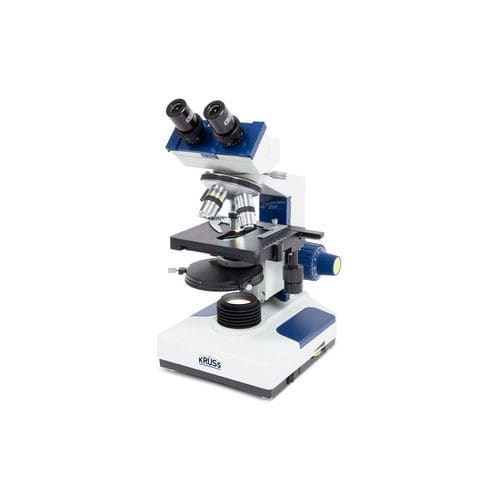

Binocular and Trinocular Microscopes for Laboratory / Schools / Universities
MBL2000 Series – Laboratory microscopes

Robust and universal. This model is ideal for general microscopy in laboratories, schools and universities. The MBL2000 offers an extensive range of add-on options: for example, with phase-contrast setting, a dark-field condenser, micrometre setup, planachromatic objectives and additional eyepieces.
A binocular optical head offers inclined viewing and interocular adjustment. A wide range of accessories is available for all models.

•Dioptre compensation with compensation scale
•Sturdy metal stand
•Coarse and fine focussing, double coaxial (0–200 μm, division 2 μm)
•Coarse focussing range: 30 mm
•Fine focussing range: 30 mm
•Right-side coarse focussing knob with fast focus
•adjustment, left-sided knob with quick-focus setting
•Graduated XY cross table with coaxial operation
•Low-voltage illumination with lighting control and
•removable pre-condenser
•Twin-lens Abbe condenser: NA 1.25
•Iris diaphragm
•Pivoting filter holder
•Height adjustment
•Glass filters: blue, yellow, green
•Power supply: 240 V, 20 W, 50/60 Hz (115 V optional)
