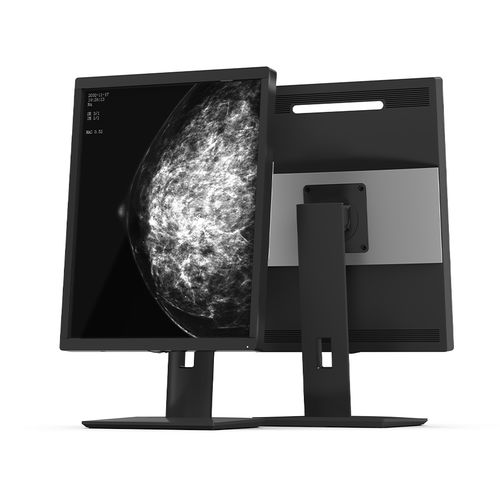

Medical imaging display 19X1Mdiagnostic1280 x 102419"
Add to favorites
Compare this product
Characteristics
- Applications
- medical imaging, diagnostic
- Resolution
- 1280 x 1024
- Display size
- 19"
- Technology
- not specified
- Options
- high-brightness
- Aspect ratio
- 5:4
- Input
- DisplayPort, VGA, DVI
- Response time
25 ms
- Viewing angle
178 °
- Width
35.7 cm
(14.1 in)- Height
6 cm
(2.4 in)- Depth
44.6 cm
(17.6 in)
Description
Product
Diagnostic display — differential contrast for medical imaging
Model
Panel size
19"
Display parameters
Power
Interface
Other (sensor)
Specifications
Characteristics / Technical specifications
Diagnostic display — differential contrast for medical imaging
Model
- 19X1M
Panel size
19"
Display parameters
- Resolution: 1280×1024
- Scanning frequency: 60 Hz
- Dot pitch: 0.294×0.294 mm
- Grayscale: 14-bit
- Viewing angle: H178° / V178°
- Brightness: 1300 cd/m²
- Contrast ratio: 1000:1
- Response time: 25 ms
Power
- Power consumption: ≤35 W
Interface
- Input: DP / DVI / VGA
Other (sensor)
- Sensors: luminance / ambient light / temperature
Specifications
- Bare dimensions (without base): 357 mm × 59.7 mm × 445.8 mm
Characteristics / Technical specifications
- Model: 19X1M
- Panel size: 19"
- Resolution: 1280×1024
- Scanning frequency: 60 Hz
- Dot pitch: 0.294×0.294 mm
- Grayscale: 14-bit
- Viewing angle: H178° / V178°
- Brightness: 1300 cd/m²
- Contrast ratio: 1000:1
- Response time: 25 ms
- Power: ≤35 W
- Input interface: DP / DVI / VGA
- Sensors: luminance / ambient light / temperature
- Bare dimensions (without base): 357 mm × 59.7 mm × 445.8 mm
