Dental thermoformer LDM-101

pressurefor dental laboratoriesfor dental aligners

Overview

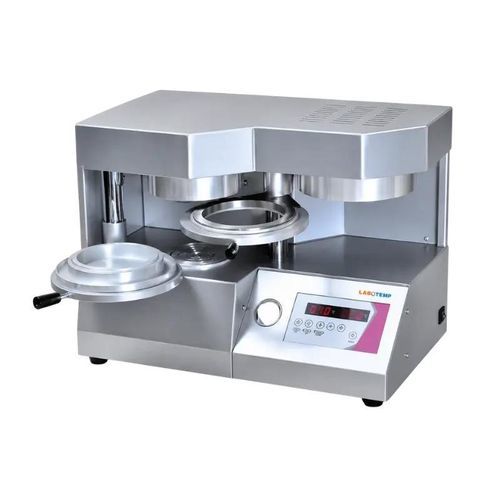

The Labotemp Dental Thermoforming Machine LDM-101 is a precision vertical pressure forming unit designed for the fabrication of custom thermoplastic dental appliances. Intended for dental laboratories, orthodontic clinics and dental production facilities, the LDM-101 uses controlled heating and high-pressure vertical forming to produce accurate, repeatable results for clear aligners, retainers, whitening trays, sports mouthguards, bruxism guards and other custom devices.

Key Benefits

• High-pressure forming delivers uniform adaptation and detailed reproduction across the thermoplastic sheet.
• Adjustable temperature and pressure settings support a wide range of thermoplastic materials and appliance types.
• Fast heating and adjustable cycles improve laboratory throughput and reduce material waste.

Features

• Vertical high-pressure forming for uniform sheet molding
• Digital control panel for precise temperature and cycle adjustments
• Compatible with thermoplastic sheets 0.8–5 mm
• Supports sheet diameter up to Ø125 mm
• Rapid heating system for short production cycles
• Compact benchtop design for laboratory integration
• Durable metal construction
• Energy-efficient heating system

Applications

• Production of clear aligners, orthodontic retainers and splints
• Manufacture of whitening trays, sports mouthguards and bruxism guards
• Suitable for dental laboratories, orthodontic clinics and dental manufacturing units requiring repeatable, high-accuracy pressure forming up to 250°C

Optional Accessories

• Oil-less air compressor

Technical Specifications

• Temperature range: ambient temperature to 250°C
• Power supply: 220V / 110V, 50/60Hz
• Power consumption: 850 W
• Heating time: 10–120 s (adjustable)
• Pressure time: 10–60 s (adjustable)
• Pressure range: 2–5 MPa
• Film diameter: Ø125 mm
• Film thickness: 0.8–5 mm
• Dimensions (W × D × H): 400 × 300 × 220 mm
• Operation type: pressure forming (vertical)
• Material forming method: vertical pressure forming for uniform molding
• Net weight: 24 kg
• Gross weight: 26 kg
• Package size: 440 × 560 × 430 mm
