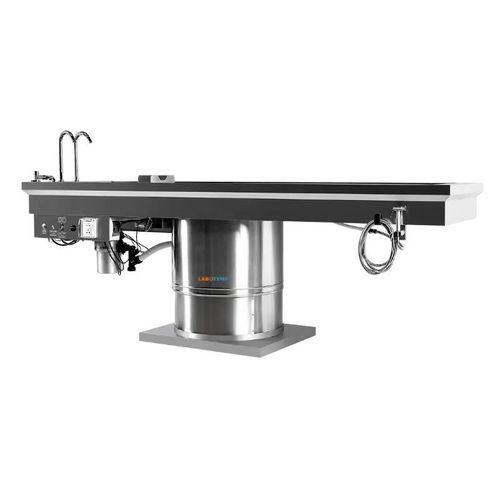

Forensic autopsy table LAT-01

laboratoryfor histopathology laboratoriesfor medical schools

Product Overview
Labotemp Autopsy Table LAT-01 is a stainless steel 304 postmortem table engineered for autopsy and anatomical dissection workflows in hospitals, forensic laboratories, pathology departments, medical colleges, mortuaries and research facilities. The corrosion-resistant construction, motorized height adjustment and rotatable work surface support hygienic handling, improved operator access and efficient procedure flow.

Key Safety & Functional Systems
The LAT-01 is designed for medical and forensic use and includes a negative-pressure ventilation interface for connection to external extraction, an integrated drainage circuit with hair separator and an internal pulverizer for tissue waste processing. Operational and safety features include hot/cold water regulation, adjustable flushing gun, waterproof sockets with leakage protection, removable organ tray, emergency stop to cut main power and a handheld remote control for positioning.

Why Choose LAT-01

• Motorized adjustable height (720–920 mm): adapts to operator posture and procedure needs.
• Integrated ventilation and drainage: reduces odors and supports hygienic waste discharge.
• Built-in pulverizer and hair separator: minimizes pipe blockage and facilitates tissue waste handling.

Features

• Built-in ventilation interface (negative-pressure ventilation when connected to external system).
• Motorized height adjustment: working height range 720–920 mm.
• Work surface manual rotation up to 40° for improved access during procedures.
• Integrated pulverizer system with 560 W motor for tissue waste processing.
• Pulverizer speed up to 4200 r/min with 1200 ml capacity.
• Drainage system with hair separator and anti-clog design.
• Hot and cold water regulator with induction and manual faucet connections.
• Adjustable mobile spray and flushing gun (length 2000 mm).
• Detachable tabletop plate with laser-engraved scale.
• Removable organ/viscera tray for specimen handling.
• Emergency stop button for main power shutdown.
• Handheld remote control for convenient adjustment and operation.

Applications

• Postmortem examination and anatomical dissection.
• Tissue sampling and forensic investigation procedures.
• Use in hospitals, mortuaries, pathology labs, medical and veterinary colleges, and research facilities.
• Hygienic cadaver handling environments requiring integrated drainage, ventilation, flushing and waste management.

Specifications (table)
Material : Stainless Steel 304
Product Size : L2600 × W800 × H800 mm
Table Height (adjustable) (mm) : 720–920; By Motor
Table can rotate : 40 degrees; Manual
Mobile spray gun length : 2000 mm
Pulverizer Power : 560 W
Pulverizer Horsepower : 1.0 hp
Pulverizer Speed : 4200 r/min
Pulverizer Capacity : 1200 ml
Emergency stop button : One (Control main power off)
Handheld remote : Yes
Voltage : 220–240 V / 50 Hz; Current 1.5 A
Load Capacity : 200 kg
Package Size : 2650 × 850 × 940 mm
Gross Weight : 190 kg

Technical Specifications

• Material: Stainless Steel 304
• Product Size: L2600 × W800 × H800 mm
• Adjustable Table Height: 720–920 mm (motorized)
• Table Rotation: 40° (manual)
• Mobile Spray Gun Length: 2000 mm
• Pulverizer Power: 560 W
• Pulverizer Horsepower: 1.0 hp
• Pulverizer Speed: 4200 r/min
• Pulverizer Capacity: 1200 ml
• Emergency Stop: One (main power off)
• Handheld Remote: Yes
• Voltage: 220–240 V / 50 Hz; Current: 1.5 A
• Load Capacity: 200 kg
• Package Size: 2650 × 850 × 940 mm
• Gross Weight: 190 kg
