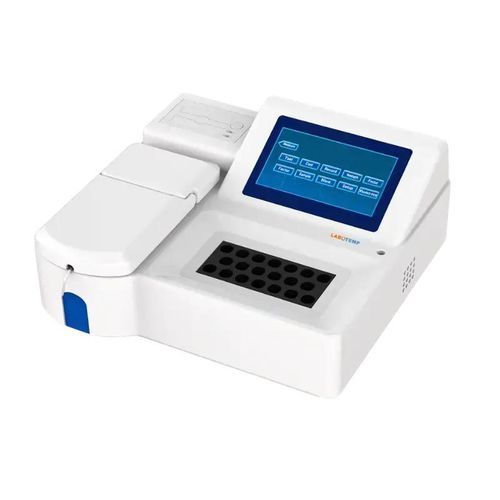

Semi-automatic biochemistry analyzer LCA-101

for life sciences applicationscompactbenchtop

Product overview
Labotemp Semi-automatic clinical chemistry analyzer LCA-101 is a bench-top system for routine biochemical testing in hospital, clinical and research laboratories. The analyzer supports end-point, fixed-time and kinetic methods for quantitative and semi-quantitative assays on serum, plasma, urine and other biological samples. Key user interfaces include a 7.0-inch LCD touchscreen and internal storage for up to 20,000 results. An integrated incubator with selectable temperature settings provides controlled reaction conditions for repeatable measurements.

Design & operation
The LCA-101 uses a flow-through direct-reading cuvette design and a multi-wavelength optical system covering 340–630 nm for broad assay compatibility. Built-in thermal printing and RS-232/USB interfaces enable local printing and data transfer to LIS/LIMS. Its compact bench-top footprint, low power consumption and vibration-resistant construction make it suitable for small clinical labs and higher-throughput diagnostic environments.

Why choose LCA-101

• Multi-method testing including end-point, fixed-time and kinetic protocols
• Stable temperature control for consistent reaction conditions
• Intuitive touchscreen operation with large on-board data storage

Features

• 7.0-inch LCD touchscreen for user-friendly control
• Advanced optical system with stable light source for consistent absorbance across wavelengths
• Multi-mode calibration (linear and non-linear curve fitting)
• Real-time reaction curve display to monitor assays
• User-defined test parameters for custom assays and reagents
• Automatic blank correction to reduce manual errors
• Internal QC program supporting daily validation and compliance workflows
• Low reagent consumption design to optimize operating costs
• Compact bench-top structure with vibration resistance
• Quick warm-up system to reduce waiting time

Applications

• Routine and semi-quantitative biochemical assays (enzymes, metabolites, glucose, lipids)
• Temperature-controlled, multi-wavelength photometric testing for hospital diagnostics, clinical laboratories, pharmaceutical QC and research facilities

Technical specifications

• Incubator temperature: R.T., 25°C, 30°C, 37°C (four options)
• Cuvette: Flow-through direct-reading cuvette
• Wavelengths: 340 / 405 / 450 / 510 / 546 / 578 / 630 nm, plus 2 open filter positions
• Wavelength accuracy: ±2 nm
• Screen: 7.0 inch LCD touch screen
• Language: English, French, Spanish (customizable)
• Printer: Built-in thermal printer
• Interface: RS-232, USB
• Power consumption: 150 VA
• Power supply: AC 110/220V ±10%, 50/60 Hz
• External size (W×D×H): 400 × 410 × 190 mm
• Packing size (W×D×H): 520 × 490 × 330 mm
• Net weight: 9 kg
• Gross weight: 12 kg
• Incubating positions: 20 incubating positions
• Sample type: Serum, plasma, urine, cerebrospinal fluid, etc.
• Analytical methods: End point, Fixed time (two-point), Dynamic (rate) method
