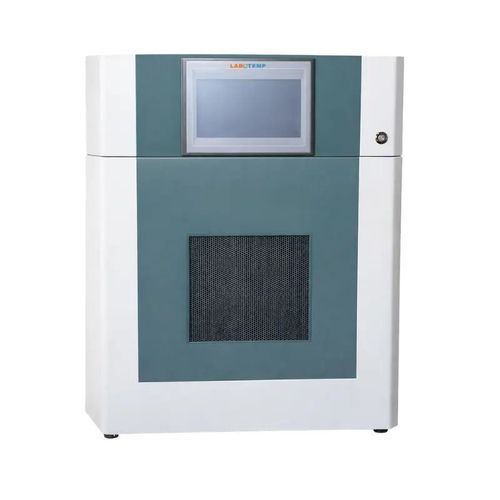

Digester for the food industry LMD-01

for environmental analysislaboratoryfor the pharmaceutical industry

Overview
Labotemp Microwave Digestion System LMD-01 is a high-throughput laboratory microwave digester for controlled acid digestion of samples at elevated temperature and pressure. The unit accepts 16 reaction vessels and features a 66 L corrosion-resistant 316L stainless-steel cavity. Continuous frequency-conversion microwave control (0–1800 W) combined with a 360° continuous-rotation turntable ensures uniform heating and reproducible digestion results.

Design & Safety

• Non-contact infrared temperature sensing (0–350°C, typical operation ≤300°C) and real-time pressure monitoring
• Self-locking explosion-proof door with multi-level interlocks and automatic fault protection
• Automatic pressure relief (operational up to 10 MPa, control up to 15 MPa) and over-pressure protection
• 66 L 316L stainless-steel cavity, efficient exhaust air cooling and PID-controlled temperature ramping

Why Choose LMD-01

• Advanced operator safety and multi-level interlocks
• Precise temperature and pressure control for validated sample preparation
• High throughput with 16-position rotor and uniform 360° heating
• Siemens PLC control with 8-inch TFT LCD touch screen for real-time process data
• TFM (modified PTFE) inner vessels and aerospace-grade PEEK outer vessels for chemical and pressure resistance

Features

• 3D waveguide with continuous rotation for uniform microwave field distribution
• Non-pulse continuous frequency-conversion microwave control
• Up to 1800 W microwave output for rapid digestion
• Real-time non-contact infrared temperature monitoring
• Accurate pressure control with automatic relief
• Siemens PLC-based intelligent control and 8-inch TFT touch display
• Imported TFM inner vessels and aerospace-grade PEEK outer vessels
• PID-controlled temperature ramping and automatic temperature/pressure curve display

Applications

• Acid digestion of environmental, food and pharmaceutical samples for trace element analysis
• Sample preparation for ICP-OES, ICP-MS and AAS workflows requiring controlled high-pressure digestion
• Pharmaceutical QC and regulatory testing with precise temperature-pressure profiles
• Material and chemical analysis of polymers, metals and inorganic compounds
• High-throughput research, academic and industrial laboratories requiring validated and repeatable conditions

Standard Accessories

• Temperature sensor
• PEEK outer vessels
• Turntable bracket
• PTFE/TFM inner vessels (70 ml / 100 ml optional)
• Venting tools

Specifications

• Number of reaction vessels: 16
• Power supply: 220 V 50 Hz / 110 V 60 Hz, 15 A
• Vessel capacity: 70 ml / 100 ml (optional)
• Microwave output power: 0–1800 W (automatic control)
• Temperature range: 0–350°C (recommended ≤260°C)
• Temperature accuracy: ±0.5°C
• Pressure range: 0–10 MPa (automatic control up to 15 MPa)
• Microwave control: non-pulse continuous frequency conversion
• Temperature control: non-contact infrared sensor with real-time monitoring
• Pressure control: real-time monitoring with automatic pressure relief
• Control system: Siemens PLC
• Display: 8-inch TFT LCD touch screen
• Microwave uniformity: 3D waveguide system
• Turntable design: 360° continuous rotation
• Cavity material: 66 L, 316L stainless steel
• Inner vessel material: imported TFM (modified PTFE)
• Outer vessel material: aerospace-grade PEEK
• Explosion protection: self-locking explosion-proof door
• Safety features: over-pressure protection, auto shutdown, alarm
• Cooling system: high-power exhaust air cooling
• Operating temperature (system): ≤300°C
• Packaging dimensions (W×D×H): 720 × 720 × 800 mm
• Gross weight: 65 kg
• Net weight: 50 kg
• Acid removal apparatus (net/gross weight): 12 kg / 20 kg
• Acid removal apparatus packaging: 250 × 250 × 300 mm
