Electronic block heater DBI-01

thermostaticmicroprocessor-controlleddual-block

Description

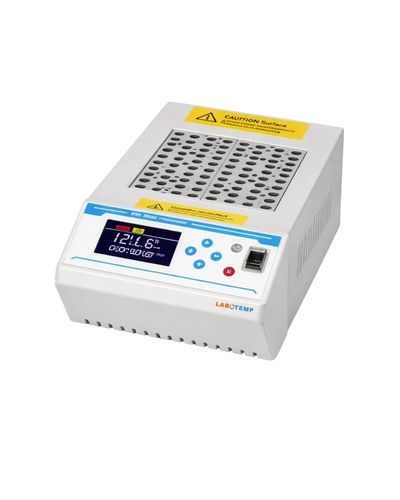

Labotemp Dry Bath Incubator DBI-01 is a compact laboratory incubator for precise temperature-controlled incubation in research, clinical, pharmaceutical and microbiology environments. It combines advanced film heating with PID temperature control to provide stable, uniform heating from RT+5°C up to 160°C with display accuracy of 0.1°C and temperature accuracy ≤ ±0.1°C @37°C. The unit accepts interchangeable heating blocks to accommodate a range of tube sizes and supports programmable operation for repeatable workflows.

Key Advantages

• Precise temperature control: PID algorithm and high-resolution display for accurate setpoint management.
• Flexible sample compatibility: interchangeable heating blocks for 0.2 ml, 2 ml, 15 ml tubes and other formats.
• Automation-ready: up to 99 programs, multi-point and multi-cycle operation to improve repeatability.

Specifications (table)
Temperature Setting Range: 0°C – 160°C
Temperature Control Range: RT +5°C – 160°C
Display Accuracy: 0.1°C
Temperature Accuracy: ≤ ±0.1°C @ 37°C
Time Range: 1 min – 99 h 59 min / continuous
Temperature Uniformity: ≤ ±1°C @ 120°C
Program Capacity: 99 Programs
Heating Time: ≤ 25 min (from 25°C to 160°C)
Heating Rate: 1°C/min, 3°C/min, 5°C/min (AUTO)
Multi-point Running: Yes (Max 9 points)
Multi-cycle Operation: Yes (Max 99 cycles)
Auto Preheating: Yes
Auto Running: Yes
Auto Resume to Run: Yes
Auto Constant Temp. at End: Yes
External Temperature Sensor: 1 Port Interface
Block Quantity: 2
Power: 400 W
Voltage: AC220V / AC110V, 50–60 Hz
Fuse: 250V 3A
Dimensions: 320 × 205 × 110 mm
Weight: 6.1 kg

Features

• Advanced film heating design for fast, even temperature rise
• High-resolution 320×480 color LCD for clear monitoring and simple programming
• Accurate PID temperature control for stable incubation
• Interchangeable heating blocks with multiple size options
• Temperature calibration and three countdown timing modes
• External sensor support for enhanced monitoring and validation
• Optional magnetic dust-proof lid for sample protection
• Hardware and software over-temperature protection for safe operation

Applications

• Sample incubation for biological and chemical assays in research and clinical labs
• Molecular biology: DNA preparation, enzyme reactions, nucleic acid workflows
• Microbiology: bacterial culture preparation and temperature-controlled experiments
• Clinical and pharmaceutical testing: sample heating, reagent preparation and stability testing
• Biotechnology and chemical reactions requiring consistent temperature control

Optional Accessories

• 0.2 ml heating block
• 2 ml heating block
• 15 ml heating block

Technical specifications

• Temperature Setting Range: 0°C – 160°C
• Temperature Control Range: RT +5°C – 160°C
• Display Accuracy: 0.1°C
• Temperature Accuracy: ≤ ±0.1°C @ 37°C
• Temperature Uniformity: ≤ ±1°C @ 120°C
• Program Capacity: 99 Programs
• Time Range: 1 min – 99 h 59 min / continuous
• Heating Time: ≤ 25 min (from 25°C to 160°C)
• Heating Rate: 1°C/min, 3°C/min, 5°C/min (AUTO)
• Multi-point Running: Yes (Max 9 points)
• Multi-cycle Operation: Yes (Max 99 cycles)
• Block Quantity: 2
• Power: 400 W
• Voltage: AC220V / AC110V, 50–60 Hz
• Dimensions: 320 × 205 × 110 mm
• Weight: 6.1 kg
