Optical microscope LFM-01

compoundfor biologylaboratory

Product overview

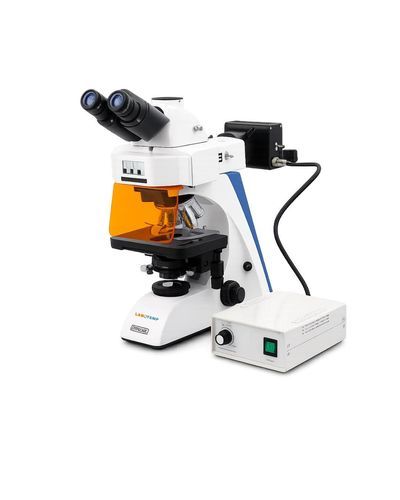

Labotemp Fluorescence Microscope LFM-01 is a research-grade fluorescence microscope designed for advanced biological imaging in clinical laboratories, universities and biomedical research facilities. The system combines a trinocular viewing head with LED excitation illumination and a 6-position fluorescence filter disk to observe fluorophore-labeled cells, tissues and microorganisms with high contrast and low heat. The infinity optical path and infinity plan objectives provide uniform, distortion-free images across the field of view. A large rackless mechanical stage with double slide holder and coaxial coarse and fine focusing deliver precise sample control for documentation and analysis.

Key features

• Multi-channel fluorescence imaging: 6-position filter disk compatible with UV, V, B and G filter sets for common fluorophores.
• Trinocular viewing head (30° inclined, 360° rotatable) for direct camera integration and imaging documentation.
• LED fluorescence excitation: stable, long-life LED source with reduced heat for continuous operation.
• Infinity optical system with infinity plan objectives for improved field flatness and contrast.
• Large rackless mechanical stage (182 × 140 mm) with 77 × 52 mm travel and double slide holder for secure sample handling.
• Coaxial coarse and fine focusing with fine focus precision of 0.002 mm for accurate z-control.
• Quintuple revolving nosepiece for rapid objective changes.
• Wide field eyepieces WF10× / 22 mm for comfortable observation.
• Swing-out condenser NA 0.9 / 0.13 with iris diaphragm for illumination control.
• Laboratory-grade construction suitable for continuous use in research and clinical environments.

Optional accessories

• Phase contrast kit and phase contrast objectives (10× / 20× / 40× / 100×)
• Turret phase contrast condenser (5-hole)
• Dark field condensers (dry and oil types)
• Polarizer and analyzer set for polarized light microscopy
• Infinity plan semi-apochromatic fluorescence objectives
• Fluorescence filter sets (UV, V, B, G)
• C-mount adapters (0.5× / 0.75× / 1×) and digital camera adapter
• Fluorescence protection barrier and LED lamp housing with power module

Technical Specifications

• Product Type: LED fluorescence microscope
• Observation Method: Bright field & fluorescence
• Viewing Head: Trinocular head, 30° inclined, 360° rotatable
• Interpupillary Distance: 48–76 mm
• Eyepiece: WF10× / 22 mm wide field
• Nosepiece: Quintuple revolving nosepiece
• Power Supply: Wide voltage 100–240 V
• Mechanical Stage Size: 182 × 140 mm
• Stage Travel Range: 77 × 52 mm
• Slide Holder: Double slide holder
• Focusing System: Coaxial coarse & fine focusing
• Coarse Focus Range: 22 mm
• Fine Focus Precision: 0.002 mm
• Condenser: Swing-out condenser NA 0.9 / 0.13 with iris diaphragm
• Fluorescence System: LED fluorescence illumination
• Fluorescence Filter Disk: 6-position fluorescence filter disk
• Filter Sets: UV / V / B / G fluorescence filters
• Camera Port: Trinocular camera port
• Objectives: Infinity plan objectives (4×, 10×, 20×, 40×, 60×, 100× optional)
• Package Size: 970 × 340 × 440 mm
• Net Weight: 18 kg
• Gross Weight: 22 kg
