Electronic moisture balance LMA-102

digitalanalyticalfor laboratory

Product overview

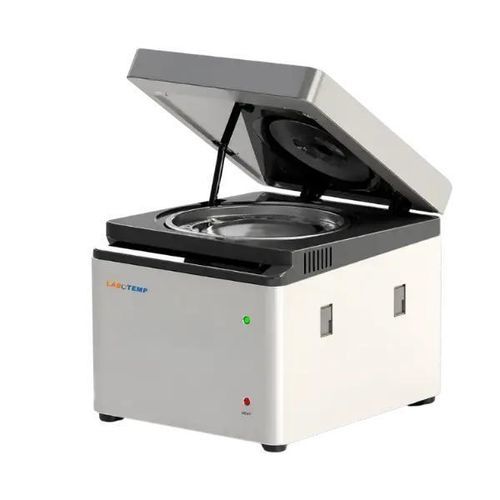

Labotemp Moisture Analyzer LMA-102 is a laboratory and industrial moisture analyzer for automated determination of total moisture in coal, biomass, ores and other industrial materials. The system uses controlled hot-air circulation heating for uniform temperature distribution. Measurement range 0–100% with stable temperature control up to 200°C, suitable for quality control and material testing workflows.

Operational summary
Engineered for high throughput, the LMA-102 supports batch testing of up to 22 samples to reduce processing time. It integrates a high-precision electronic balance, intelligent microcomputer control and automated data processing. Features such as automatic lid operation, power-off memory and robust heating components enable continuous, repeatable operation with minimal operator intervention.

Benefits / Why choose

• Automated workflow for consistent and repeatable moisture results
• Batch capability to increase laboratory throughput
• Adaptable to varied sample types including coal, biomass and food materials

Features

• Batch sample testing (up to 22 samples)
• Uniform temperature distribution with rapid heating
• Imported centrifugal fan and custom heater assembly
• Simultaneous total moisture and analytical moisture determination
• High degree of automation with advanced control system
• Integrated electronic balance with automatic weighing
• Automatic sample weighing, data processing and report generation
• Upward-flipping furnace lid for easy sample handling
• Accessible internal design for cleaning and heat dissipation
• Power-off memory with data recovery and automatic test resume
• Ceramic crucibles for uniform heating and durability
• Optional support for nitrogen drying method
• Suitable for coal slurry and iron concentrate testing
• Intelligent terminal with network connectivity for real-time data sharing

Applications

• Coal & Coke
  Determination of total and inherent moisture to optimize combustion efficiency, pricing and compliance with standards
• Mining & Metallurgy
  Moisture testing of iron ore, concentrates and mineral samples to ensure feed consistency and processing efficiency
• Power Plants
  Fuel quality assessment to maintain calorific value and improve combustion control
• Biomass & Biofuel Industry
  Measurement of moisture in pellets, agricultural residues and biomass to ensure efficient burning and storage stability
• Agriculture & Food Industry
  Control of moisture in grains, seeds and food materials to prevent spoilage and meet storage standards

Technical specifications

• Test range: 0 – 100%
• Maximum operating temperature: 200°C
• Temperature control accuracy: ±1°C
• Number of samples: batch testing supported, up to 22 samples
• Sample weight (total moisture): 10 g (particle size ≤ 6 mm)
• Sample size: options 0.2 mm and 6 mm
• Test time: adjustable per standard requirements
• Power supply: 220V ±22V, 50Hz ±1Hz
• Power consumption: ≤ 3.5 kW
• Net weight: 50 kg
• Gross weight: 60 kg
• Dimensions (W×D×H): 570 × 570 × 400 mm
• Package size: 620 × 620 × 450 mm
