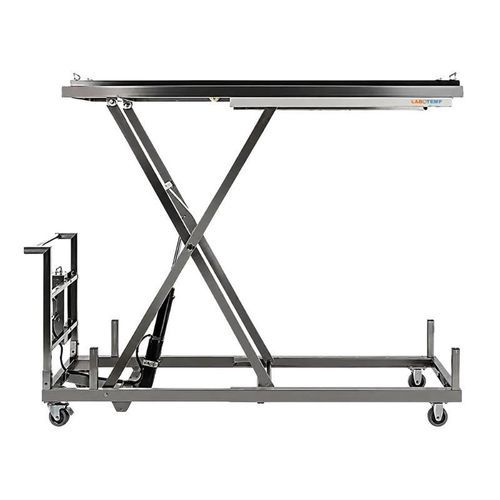

Lifting mortuary trolley LMT-03

storagetransportfor loading

Overview
Labotemp Mortuary Trolley LMT-03 is a fully electric hospital mortuary trolley engineered for safe, hygienic and efficient body handling in mortuaries, hospitals, pathology departments and funeral homes. The unit provides an adjustable lifting range from 400 to 1700 mm, an independent removable body tray with locking mechanism and a battery-powered remote-control lift to minimise manual handling and facilitate loading into mortuary refrigerators and storage racks.

Key Benefits

• Electric battery-powered lift reduces manual handling and improves workflow efficiency
• 304 stainless steel construction for ease of cleaning and corrosion resistance in clinical environments
• Remote control and lockable wheels for safe positioning and single-operator use

Features

• Remote key control for lift operation
• Durable 304 stainless steel frame and tray with corrosion-resistant surface
• Independent removable body tray with integrated tray locking mechanism
• 200 kg maximum load capacity
• Single-scissor lifting structure for stable vertical movement
• Four heavy-duty caster wheels with two lockable wheels
• Designed for single-person operation
• Multiple lifting cycles per full battery charge
• Compatible with mortuary refrigerators and corpse storage racks

Applications

• Safe transfer, lifting and loading of deceased bodies in hospital mortuaries and morgues
• Forensic laboratories, pathology departments and funeral homes
• Transferring bodies to mortuary refrigerators and storage racks with minimal manual handling

Specifications (table)
Material : Stainless Steel 304
Operation : Fully electric (Battery powered)
Operation Method : Remote key
Scissors : 1
Adjustable Lift Height : 400 to 1700 mm
Dimensions – Lowest Position (W × D × H) : 2060 × 660 × 400 mm
Dimensions – Highest Position (W × D × H) : 2060 × 660 × 1700 mm
Number of Trays : 1 Piece
Number of Handles on Tray : One on each side
Body Tray Size : 1940 × 580 mm
Thickness of Stainless Steel : 1.0 mm
Carrying Capacity : 200 kg
Wheel : 4 pcs (2 pcs locked)
Single Person Operation : Yes
Net Weight : 95 kg
Packing Size : 2200 × 690 × 550 mm
Gross Weight : 125 kg

Technical specifications

• Material: Stainless Steel 304
• Operation: Fully electric (Battery powered)
• Operation Method: Remote key
• Scissors: 1
• Adjustable Lift Height: 400 to 1700 mm
• Dimensions (Lowest): 2060 × 660 × 400 mm
• Dimensions (Highest): 2060 × 660 × 1700 mm
• Number of Trays: 1 Piece
• Handles on Tray: One on each side
• Body Tray Size: 1940 × 580 mm
• Thickness of Stainless Steel: 1.0 mm
• Carrying Capacity: 200 kg
• Wheels: 4 pcs (2 pcs locked)
• Single Person Operation: Yes
• Net Weight: 95 kg
• Packing Size: 2200 × 690 × 550 mm
• Gross Weight: 125 kg
