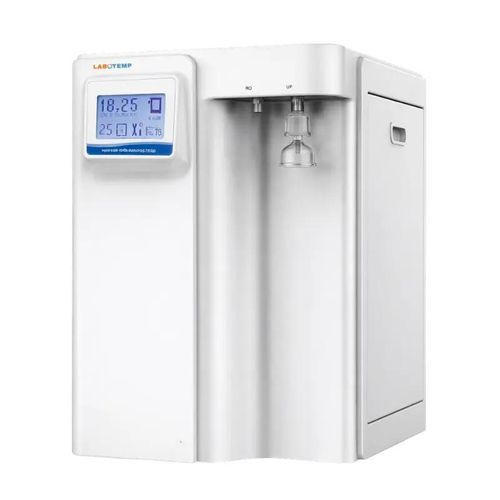

Laboratory water purification system LWS-01

for the pharmaceutical industrychromatographyfor laboratory analyzers

Product Overview
The Labotemp Ultrapure Water Purification System LWS-01 is a laboratory-grade water purification unit designed to produce ultrapure (Type I) and RO purified water for analytical and research environments. It combines multi-stage filtration, reverse osmosis and dual-wavelength UV sterilization to remove ions, organics, microorganisms and trace contaminants. With resistivity up to 18.25 MΩ·cm, the system is suitable for HPLC, molecular biology, microbiology and precision analytical testing.

Key Capabilities
The LWS-01 includes a color LCD touchscreen for real-time monitoring of water quality, system status and alerts. An integrated high-pressure storage barrel and support for external 40–60 L tanks ensure continuous supply for high-demand workflows. The unit uses durable filtration elements and accessible components to simplify maintenance and ensure long-term reliability.

Features

• 5-stage filtration
• Three-way water quality monitoring (RO, UP, inlet)
• Dual-wavelength UV sterilization
• 17-inch pretreatment unit
• Built-in high-pressure barrel; supports external 40–60 L tank
• Real-time online water quality monitoring
• LCD color touch screen interface
• Regular and quantitative water intake control
• Integrated terminal filtration
• Automatic temperature compensation
• Password protection for secure operation
• Optional data transmission support

Applications

• Ultrapure water supply (18.25 MΩ·cm) for HPLC, GC and analytical instruments
• Reagent preparation and sample dilution in pharmaceutical and QC laboratories
• Microbiology and molecular biology workflows requiring low-conductivity water
• Glassware rinsing and media preparation in research and academic labs
• Continuous purified water generation for biotech and regulated lab environments

Standard Accessories

• Pressure tank
• Terminal filter
• Three-way ball valve
• Raw material belt

Specifications Table
Water Production Capacity : 10 – 60 L/hour
Water Quality (UP Output) : 18.25 MΩ·cm @ 25°C
RO Effluent Quality : 1 – 5 µS/cm
Power Supply : 220V 50Hz
Filtration System : Three-way water quality monitoring (RO, UP, inlet)
UV Sterilization : Dual wavelength UV
Pretreatment System : 17-inch pretreatment unit
Pressure System : Built-in high-pressure barrel (supports external 40–60 L tank)
Water Intake Control : Regular and quantitative water intake
Display System : LCD color touch screen
Monitoring System : Online real-time water quality monitoring
Terminal Filtration : Included terminal filter
Temperature Compensation : Automatic compensation
Data Features : Optional data transmission
Security Feature : Password protection function
Output Type : Primary Water
Net Weight : 40kg
Gross Weight : 41kg
Package Size : 64×56.5×85cm

Technical specifications

• Model: LWS-01
• Water production capacity: 10–60 L/hour
• Ultrapure water resistivity: 18.25 MΩ·cm @ 25°C
• RO effluent quality: 1–5 µS/cm
• Power supply: 220V 50Hz
• Pretreatment: 17-inch pretreatment unit
• Filtration monitoring: three-way (RO, UP, inlet)
• UV sterilization: dual wavelength
• Storage: built-in high-pressure barrel; supports external 40–60 L tank
• Interface: LCD color touch screen with online real-time monitoring
• Controls: regular and quantitative water intake, automatic temperature compensation, password protection
• Optional: data transmission support
• Includes: terminal filter, pressure tank, three-way ball valve
• Net weight: 40 kg; Gross weight: 41 kg; Package size: 64 × 56.5 × 85 cm
