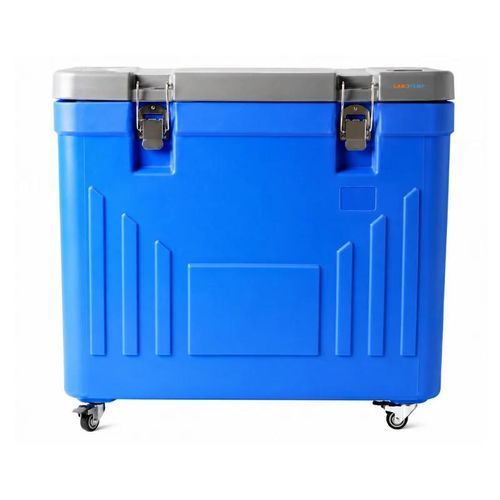

Vaccine freezer CBL-02

for hospitalsblood bankfor laboratory

Overview
Labotemp Cold Box CBL-02 is a portable passive cold box designed to maintain 2°C to 8°C for secure storage and transport of temperature-sensitive vaccines, biological samples, pharmaceuticals, reagents and diagnostic specimens. Built by rotationally molded polyethylene, it delivers strong insulation and mechanical resistance for laboratory, clinical and field use. The unit provides 110 L total capacity (80 L usable) and accepts four 2700 g reusable ice packs for prolonged passive temperature retention during transit.

Key benefits

• Maintains 2°C–8°C for safe handling and transport of temperature-sensitive medical materials
• One-piece rotationally molded PE body for impact and corrosion resistance
• Passive cooling with 4 × 2700 g reusable ice packs (no external power required)

Features

• Rotationally molded PE construction
• Compatible with four 2700 g reusable ice packs
• Thick insulated walls to reduce heat transfer during transport
• Smooth, seamless interior for easy cleaning and disinfection
• Lightweight yet robust for field and laboratory deployment

Applications

• Cold chain transport and temporary storage of vaccines, blood products, biological samples, diagnostic specimens, pharmaceuticals and reagents
• Suitable for hospitals, blood banks, clinical and research laboratories, vaccination campaigns, public health programs, pharmaceutical distribution and remote healthcare facilities requiring passive 2°C–8°C maintenance

Technical specifications

• Total Capacity: 110 L
• Usable Capacity: 80 L
• Material: PE (Polyethylene)
• Manufacturing Process: Rotational Molding
• External Dimensions (W × D × H): 685 × 500 × 560 mm
• Internal Dimensions (W × D × H): 580 × 400 × 470 mm
• Packaging Dimensions (L × W × H): 700 × 525 × 585 mm
• Gross Weight (Without Ice Packs): 15.5 kg
• Ice Pack Configuration: 4 × 2700 g Ice Packs
• Gross Weight (With Ice Packs): 25.25 kg
