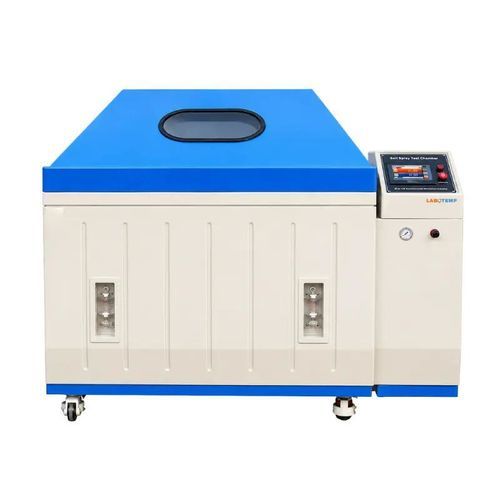

Climate chamber SSC-05

thermostatictemperaturesalt spray

Product Overview
Labotemp Salt Spray Test Chamber SSC-05 is a high-capacity salt spray chamber designed for accelerated corrosion testing of metal components, coated surfaces, automotive parts, marine hardware, electronic assemblies, and industrial materials. With a 1280 L test chamber, ambient to +60°C workroom and salt solution temperature range, and ±0.5°C temperature fluctuation, this advanced salt spray test machine delivers stable and repeatable corrosion testing in accordance with ASTM B117, ISO 9227, and MIL-STD-810 standards.

Key Benefits

• Uniform salt fog distribution via dual-side atomizer spray towers for consistent exposure across samples.
• Precise temperature control with PID controller and ±0.5°C fluctuation for repeatable test conditions.
• Durable, corrosion-resistant construction including one-piece glass fiber reinforced plastic chamber and quartz spray nozzles for long service life.
• Supports continuous and periodic (cyclic) spray modes to meet different test requirements.
• Integrated safety and convenience features: pneumatic lid/sealing, emergency stop, fog collection, and external brine tank with mixing.

Features

• Touch Screen PID programmable controller supporting multiple test programs, adjustable spray parameters, USB connectivity and Ethernet communication.
• Large 1280 L test chamber accommodating large components and multiple specimens.
• Dual-side atomizer spray system with adjustable spray volume for uniform mist coverage.
• Quartz spray nozzles resistant to corrosion and clogging.
• 31 L saturated air barrel to preheat compressed air for improved spray consistency.
• Pneumatic lid opening and airtight pneumatic sealing system to minimize fog leakage.
• External 78 L salt solution (brine) tank with mixing system for homogeneous solution and long-duration testing.
• Integrated safety protection including emergency stop, saturated barrel dry-burn protection, and liquid level monitoring.

Applications

• Automotive: corrosion resistance testing of vehicle components, fasteners, panels, brake parts and protective coatings.
• Aerospace & Defense: testing structural components, aircraft hardware, fasteners and surface treatments.
• Electronics & Electrical Equipment: assessing corrosion resistance of connectors, enclosures, circuit components and assemblies.
• Metal Finishing & Surface Coatings: verification of electroplating, galvanizing, anodizing, powder coatings, paints and protective finishes.
• Marine & Offshore Equipment: simulating aggressive marine environments for ship components and offshore hardware.
• Industrial Manufacturing & Quality Control: product qualification, QA and durability testing of metal parts and assemblies.
• Research & Material Development: R&D labs for development, comparison and validation of corrosion-resistant materials and coatings.

Standard Accessories

• External salt solution tank (78 L) with brine mixing system
• Fog collection cylinder
• Fog collector
• Quartz spray nozzles
• Saturated air barrel (31 L)
• Sample holding rods with V-shaped grooves
• Pneumatic lid opening and sealing system
• PID programmable touchscreen controller
• Ethernet communication port
• USB communication port
• Emergency stop button
• Water recirculation purification system
• Four lockable casters with brakes

Optional Accessories

• Consumables
• Industrial salt
• Water filter element
• Spare parts
• Saturated barrel heating tube
• Spray nozzle
• Measuring cylinder
• Solid-state relay
• Contactor

Characteristics / Technical specifications

• Model: SSC-05
• Interior Volume: 1280 L
• Internal Dimensions (D × W × H): 1000 × 1600 × 800 mm
• Overall Dimensions (D × W × H): 1300 × 2160 × 1720 mm
• View Window Size: 800 × 300 mm
• Chamber Material: Glass Fiber Reinforced Plastic (FRP)
• Workroom Temperature Range: Ambient to +60°C
• Saturated Air Barrel Temperature Range: Ambient to +60°C
• Salt Solution Temperature Range: Ambient to +60°C
• Temperature Fluctuation: ±0.5°C
• Temperature Deviation: ±2.0°C
• Salt Fog Deposition: 1–2 mL / 80 cm² / h
• Spray Type: Continuous / Periodic
• Controller: PID Programmable Controller
• Temperature Sensor: PT100Ω / MV A-Class
• Heating Element: Nichrome Heater
• Air Preheating System: 31 L Saturated Air Barrel
• Spraying System: Atomizer Tower & Spray Nozzles
• Salt Fog Collection: Fog Collector & Fog Measuring Cylinder
• Sealing System: Pneumatic Seal
• External Salt Solution Tank: 600 × 370 × 350 mm (78 L)
• Power Supply: 204 V, 60 Hz, 3 Phase
• Maximum Noise Level: 65 dBA
• Operating Ambient Temperature: 5°C to 35°C
• Operating Humidity: ≤85% RH
• Net Weight: 355 kg
• Gross Weight: 518 kg
• Package Size: 2400 × 1450 × 1950 mm
