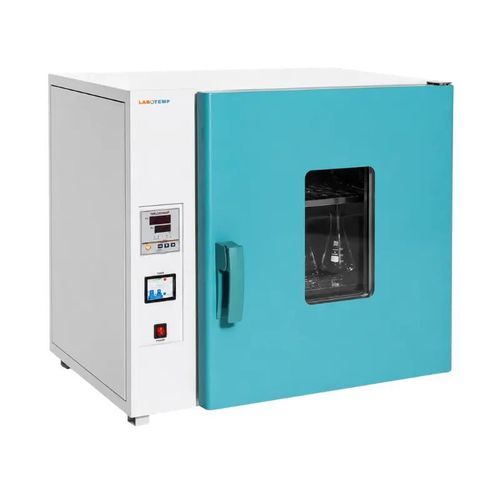

Laboratory sterilizer LHS-101

microbiologyfor the pharmaceutical industryfor research

Overview
Labotemp Hot Air Sterilizer LHS-101 is a compact dry-heat sterilization oven designed for validated, moisture‑resistant sterilization of laboratory glassware, stainless-steel instruments and metal tools. The 20 L chamber, adjustable range from RT+10°C to 250°C and ±0.5°C stability provide precise, uniform heating for microbiology labs, hospitals, pharmaceutical and research facilities.

Key advantages

• Consistent dry-heat sterilization using forced-air convection for uniform temperature distribution.
• Accurate control with PID microprocessor and PT100 sensor (0.1°C resolution).
• Enhanced operational safety with leakage protection and audible/visual over-temperature alarms.

Features

• Forced-air convection and high-performance circulation for rapid, even heating.
• Automatic parameter adjustment to optimize heating and energy use.
• Rear air suction and bottom air supply to improve chamber uniformity.
• Two adjustable shelves (30 mm spacing) to accommodate varied sample sizes.
• Anti-scalding door handle and antimicrobial powder-coated electro-galvanized exterior for durable, safe operation.
• Optional test access ports (Ø25, Ø50, Ø80 mm) and LCD display with timer (1–9999 min).

Applications

• Dry-heat sterilization of glassware, stainless-steel surgical instruments, forceps, scalpels and metal components.
• Sterilization of powders and other moisture-resistant materials requiring dry heat.
• Suitable for microbiology laboratories, pharmaceutical production, hospitals, academic and QC laboratories for routine validated processing.

Technical specifications

• Capacity: 20 L
• Air circulation: Forced air convection
• Temperature range: RT+10°C to 250°C
• Temperature stability (fluctuation): ±0.5°C
• Temperature resolution: 0.1°C
• Temperature uniformity: 0.25°C
• Sensor: PT100
• Controller: PID microprocessor
• Display: LCD
• Timer: 1–9999 min
• Interior: Stainless steel
• Exterior: Electro-galvanized steel with antimicrobial powder coating
• Shelves: 2 (adjustable, 30 mm spacing)
• Test access port: Optional Ø25, Ø50, Ø80 mm
• Safety: Leakage protection & over-temperature alarm
• Power supply: 220 V, 50 Hz
• Power consumption: 500 W
• Internal chamber (W × D × H): 300 × 300 × 270 mm
• External dimensions (W × D × H): 590 × 470 × 440 mm
• Shipping dimensions (W × D × H): 710 × 600 × 550 mm
• Net weight: 30 kg
• Gross weight: 45 kg
