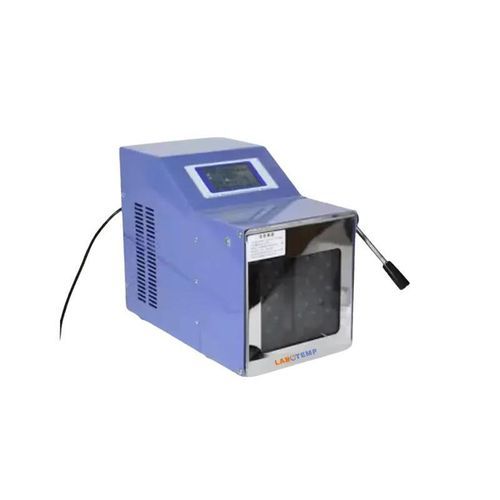

Reciprocating homogenizer LTH-201

back-and-forthcompactbenchtop

Product overview
The Labotemp Stomacher LTH-201 is a benchtop stomacher homogenizer designed for fast, sterile and reproducible sample preparation in microbiology, clinical and research laboratories. The unit processes samples directly inside sterile disposable homogenization bags to minimize cross-contamination while preserving sample integrity. Programmable microprocessor control supports up to 8 user-defined programs with adjustable speed (3–12 strokes/s), flapping distance (0–50 mm) and timing from 0.1 s up to 99 h 59 min 59 s. The instrument accommodates sample volumes from 3–400 mL and includes a 4.3-inch color touchscreen, integrated heating sterilization and UV disinfection for hygienic chamber control.

How it works
The LTH-201 uses a paddle-based homogenization mechanism that compresses samples inside disposable bags without direct contact with the instrument. Adjustable flapping distance and programmable modes allow optimization for different sample types. Automatic door interlock, anti-pinch safety stop and soft-start protect operators and delicate samples. Disposable bag workflow eliminates chamber cleaning between samples, reducing turnaround time and contamination risk.

Key benefits

• Sterile disposable-bag processing to minimize cross-contamination and simplify post-run cleanup.
• Programmable operation with up to 8 methods for repeatable results across workflows.
• Integrated heating sterilization and UV disinfection for hygienic sample handling.

Features

• Heating/sterilization function: RT–60°C for chamber decontamination.
• Paddle-based homogenization for fast, gentle and reproducible processing.
• Disposable bag workflow eliminates chamber cleaning and reduces contamination risk.
• Microcomputer control with 8-segment combined programming and real-time monitoring.
• Adjustable speed (3–12 strokes/s), time (0.1 s–99 h 59 min 59 s) and flapping distance (0–50 mm).
• Soft-start technology and pause/resume function for process control and sample protection.
• UV disinfection (253.7 nm) and audible voice prompts/end-of-cycle alarm.
• Automatic safety door interlock and anti-pinch/anti-collision stop.
• Durable stainless steel chamber with corrosion-resistant powder coating and removable window.
• Compact benchtop design with 4.3-inch touchscreen for quick parameter adjustment.

Applications

• Food microbiology
  Sample preparation for microbiological analysis, pathogen detection and quality control.
• Pharmaceutical testing
  Homogenization of materials and formulations for microbiological and analytical workflows.
• Clinical diagnostics
  Processing of biological specimens for microbiology and diagnostic procedures.
• Molecular biology
  Uniform homogenization for DNA, RNA and protein extraction.
• Environmental analysis
  Preparation of soil, water, sludge and other environmental matrices.
• Veterinary laboratories
  Homogenization of animal tissues and diagnostic samples.
• Cosmetics testing
  Microbiological quality control of cosmetic and personal care products.
• Research laboratories
  Consistent sample preparation for life-science and biotechnology research.
• Tissue homogenization
  Efficient processing of soft tissue samples for downstream analysis.

Optional accessories

• Sterile homogenization bags (170 × 300 mm)

Technical specifications

• Sample capacity: 3–400 mL
• Sterile bag size: 170 × 300 mm
• Display: 4.3-inch color touchscreen
• Controller: microcomputer control with 8-segment combined programming
• Operating temperature: 0 °C to 35 °C
• Overall dimensions (W × D × H): 420 × 230 × 330 mm
• Net weight: 19 kg
• Gross weight: 22 kg
• Homogenization speed: 3–12 strokes/second
• Homogenization time: 0.1 s–99 h 59 min 59 s (continuous operation supported)
• Adjustable flapping distance / pumping interval: 0–50 mm
• Start mode: soft start
• Pause function: yes
• Heating function: yes (RT–60 °C)
• Disinfection: heating sterilization + UV disinfection (253.7 nm)
• Anti-collision / anti-pinch: automatic stop
• Voice prompt: yes
• Door protection: automatic safety door interlock
• Effective sample volume: 3–400 mL
• Power supply: 220 V / 50 Hz
• Power consumption: 500 W
• Chamber material: stainless steel with anti-corrosion powder coating
• Pumping box body: stainless steel with anti-corrosion powder coating
• Alarm: end-of-cycle alarm
• Others: removable window, automatic door safety lock
