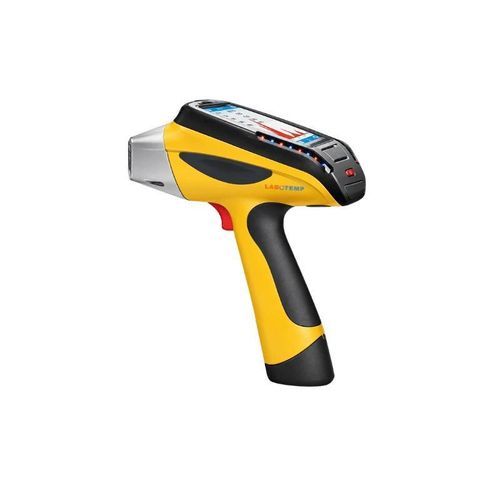

EDXRF spectrometer LXR-101

energy dispersive X-ray fluorescencefor research and developmentfor quality control

Product Overview
Labotemp Handheld XRF Analyzer LXR-101 provides rapid nondestructive elemental analysis and material identification for metals, alloys and other sample types. It is a portable EDXRF analyzer with standard SDD detector and optional Fast-SDD. The instrument measures elements from magnesium (Mg) to uranium (U), supports simultaneous analysis of up to 40 elements, and is compatible with solid, liquid and powder samples. The design features a 5-inch high-definition 360° rotatable touchscreen, built-in Wi‑Fi and Bluetooth, rechargeable lithium battery and sealed waterproof/dustproof housing. Safety functions include automatic sample detection, radiation shielding and automatic X-ray tube shutdown.

Key Advantages

• Rapid nondestructive analysis with results reported in approximately one second.
• Wide elemental range: Mg to U with simultaneous multi-element analysis up to 40 elements.
• Portable handheld design for field and laboratory verification.
• Supports solid, liquid and powder samples with content range from ppm to 99.99%.
• Integrated connectivity and data transmission for workflow integration (Wi‑Fi, Bluetooth, USB, desktop connection).
• Comprehensive safety protections and automatic interlocks for reliable on-site use.

Features

• Up to 40 elements analysis
• Handheld XRF form factor for portable field and laboratory use
• Energy Dispersive X-Ray Fluorescence (EDXRF) technology
• Rapid measurement with ~1 second result reporting (configurable 1–60 s)
• Elemental range Mg (Z=12) to U (Z=92)
• Compatibility with solid, liquid and powder samples
• Ultra-near optical path design — no helium required for light-element detection starting at Mg
• 5-inch HD LCD touchscreen with 360° rotation
• Sealed waterproof and dustproof instrument housing
• Direct surface measurement for rapid field checks
• SDD detector as standard; Fast-SDD optional
• Collimators 4.0 mm and 2.0 mm; six automatic filters
• User Mode (one-key sample recognition) and Expert Mode (detailed analysis)
• Internal intensity correction for geometry and density deviations
• Rechargeable 9000 mAh battery (up to 12 hours); optional 27000 mAh super battery
• Built-in Wi‑Fi and Bluetooth; waterproof mini USB; desktop PC support
• Digital multi-channel spectral processing and SPI data transmission
• Automatic sample induction and multiple safety protections including radiation shielding and automatic X-ray tube shutdown
• Three-color intelligent status indicator and security linkage locking device
• Professional alloy analysis software supporting PMI and precious-metal analysis

Applications

• Precious metal and jewelry testing (gold, silver, platinum, palladium)
• Aerospace alloy identification and material verification
• Machinery manufacturing and processing material identification
• Boiler and pressure vessel material quality control
• Waste metal recycling and scrap metal classification
• Iron and steel smelting alloy composition identification
• Shipbuilding material verification

Standard Accessories

• Three-military-grade protection case (compression, waterproof, shock absorption)
• Two lithium batteries (standard 9000 mAh each)
• Charger and universal adapter (110–220 V)
• PDA accessories
• Radiation shield
• Car charger for field charging
• 4 GB SD memory card and card reader

Optional Accessories

• 27000 mAh super battery
• Seat-type test support
• Bluetooth printer
• Mill and manual pressure machine
• Various sieve meshes

Technical specifications

• Analytical Method: Energy Dispersive X-Ray Fluorescence (EDXRF)
• Element Measuring Range: Atomic number 12–92 (Mg to U)
• Simultaneous Analysis: Up to 40 elements
• Detection Objects: Solid, Liquid, Powder
• Content Range: ppm to 99.99%
• Detection Time: 1–60 seconds (typical ~1 s)
• Detection Limit: ~1–500 ppm
• Detector: SDD (standard); Fast-SDD (optional)
• Detector Resolution: ≥128 eV
• Excitation Source: 50 kV / 200 µA silver-target end-window miniature X-ray tube
• Collimator Diameter: 4.0 mm and 2.0 mm
• Filters: 6 types with automatic switching
• Helium Requirement: Not required (ultra-near optical path)
• Display Type: LCD touch screen, 5 inch, 1080 × 720, 360° rotation
• Camera: 500 W pixel high-resolution camera
• Analysis Software: Professional alloy analysis software (PMI, precious metal modes)
• Operating Modes: User Mode and Expert Mode
• Storage: Standard 4 GB; expandable up to 32 GB
• Spectral Count Rate: Up to 500K cps
• Internal Correction: Geometry, density and structure compensation
• Data Transmission: Digital multi-channel processing and SPI transmission
• USB: Waterproof mini USB
• Computer Connection: Desktop supported
• Battery: Rechargeable lithium 9000 mAh (standard), optional 27000 mAh
• Working Time: Up to 12 hours (standard battery)
• Power Adapter: 110–220 V universal
• Power Supply: 220 V 50 Hz / 110 V 60 Hz
• Sample Detection: Automatic induction
• X-Ray Tube Protection: Automatic shutdown
• Radiation Protection: Standard radiation shields
• Testing Wall: Thickened instrument alloy testing wall
• Safety System: Multiple safety protection functions
• Status Indicator: Green – Power On; Red blinking – Testing; Yellow blinking – Error
• Security: Security linkage locking device
• Operating Temperature: −20°C to +50°C
• Operating Humidity: less than 90%
• Instrument Dimensions: 244 × 90 × 330 mm
• Packaging Dimensions: 570 × 270 × 560 mm
• Instrument Weight: 1.7 kg
• Gross Weight: 14 kg
• Protection Box: Three-military-grade protection box with compression, waterproof and shock absorption
