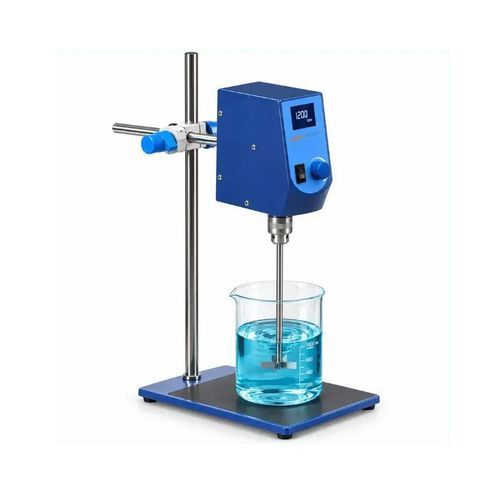

Overhead laboratory mixer LOS-101

digitalfor productionfor chemical products

Product Overview
The LOS-101 laboratory overhead stirrer provides controlled mechanical stirring for laboratory mixing tasks. Engineered for up to 20 L working volume, it features a 100–2500 rpm speed range with digital adjustment, LCD readout and a brushless 60 W motor for continuous operation. The overhead drive transmits torque directly through the stirring shaft for reproducible agitation across a variety of liquid and compatible materials.

Key Features

• Digital LCD control with precise speed setting, speed display and timer function.
• 100–2500 rpm range and 100 rpm minimum increment for accurate speed selection.
• Three rotation modes: forward, reverse and alternating forward/reverse.
• Brushless motor (60 W) designed for continuous running and stable torque delivery.
• Maximum working volume: 20 L; supports materials up to 10,000 mPa·s viscosity.
• Stainless steel head and plastic housing; 200 × 300 mm plate with 50 kg load capacity for stable mounting.
• Continuous operation and timer-controlled cycles to support extended processes and repeatable tests.

Applications

• Chemical Laboratories
  Controlled stirring for sample preparation, reactions and formulations at laboratory scale.
• Pharmaceutical Research
  Mixing and formulation tasks requiring reproducible speed control and timed cycles.
• Material Research
  Homogenization and dispersion tasks for R&D and testing of liquid systems.
• Laboratory R&D
  Supports development workflows needing continuous mixing, variable rotation direction and timer control.
• Liquid and Higher-Viscosity Mixing
  Suitable for a range of liquid mixing operations including materials up to 10,000 mPa·s.

Technical Specifications

• Product Type: Laboratory Overhead Stirrer
• Maximum Volume: 20 L
• Speed Range: 100 to 2500 rpm
• Minimum Speed Increment: 100 rpm
• Working Time: Continuous
• Maximum Viscosity: 10,000 mPa·s
• Rotation Modes: Forward, Reverse, Alternating Forward/Reverse
• Display: LCD
• Control: Digital
• Timer: Yes
• Drive: Motor
• Motor Type: Brushless
• Motor Power: 60 W
• Exterior Material: Plastic housing; stainless steel head
• Plate Size: 200 × 300 mm
• Plate Load Capacity: 50 kg
• Exterior Dimensions: 115 × 95 × 240 mm
• Packing Dimensions: 400 × 250 × 210 mm
• Power Supply: 100–240 V, 50/60 Hz
• Net Weight: 7 kg
• Gross Weight: 8 kg
