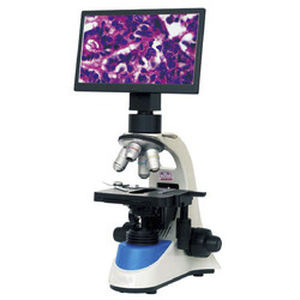

Optical microscope MSC21-04

laboratoryfor researchmedical

Product Details
Digital Biological Microscope is an optical microscope that is primarily designed to observe cells, tissues as well as other biological specimens. Magnification range anywhere from 10x – 1,000x or more by attaching multiple objective lenses.

• Used in University, Medical, Laboratory, Research, Pharmaceutical

Key Features

• The Microscope has a Ball beating quadruple nosepiece. It comes with an optional plan achromatic objective. It can be used under the high temperature and high humidity environment.

Features

• The Microscope has a Ball beating quadruple nosepiece. It comes with an optional plan achromatic objective. It can be used under the high temperature and high humidity environment.

Specifications
Viewing Head:
     Sliding Trinocular Head Inclined at 45° | No
     Compensation Free Trinocular Head inclined at 30° | No
     10° LCD | Yes
Nosepiece:
     Ball Beating Quadruple Nosepiece | Yes
Eyepiece:
     WF10X/ 18mm | Yes
Objective:
     Achromatic 4X, 10X, 40X(S) 100X(S,O) | Yes
     Plan Achromatic 4X, 10X, 40X(S) 100X(S,O) | Optional
Stage:
     Double Layer Mechanical Stage 135x140mm | Yes
Condenser:
     ABBE NA1.25 condenser with Iris Diaphragm & filter, rack & pinion adjustable | Yes
Illumination:
     Build-in Illumination, Halogen lamp 6 V / 20 W, Power supply 90-230 V | Yes
Power Supply:
     AC110/220 V +10 % , 50/60 Hz | Yes
Package:
     Cartoon with foam | Yes
Package Size:
     250x360x460 mm | Yes
Gross Weight:
     8 kg | Yes

Technical Specifications / Characteristics

• Magnification range: 10x – 1,000x or more
• Ball beating quadruple nosepiece
• Optional plan achromatic objective
• WF10X/18mm eyepiece
• Achromatic objectives: 4X, 10X, 40X(S), 100X(S,O)
• Plan achromatic objectives: 4X, 10X, 40X(S), 100X(S,O) (optional)
• Double layer mechanical stage: 135x140mm
• ABBE NA1.25 condenser with iris diaphragm & filter, rack & pinion adjustable
• Built-in illumination: Halogen lamp 6V/20W
• Power supply: 90-230V, AC110/220V +10%, 50/60Hz
• Package size: 250x360x460 mm
• Gross weight: 8 kg
