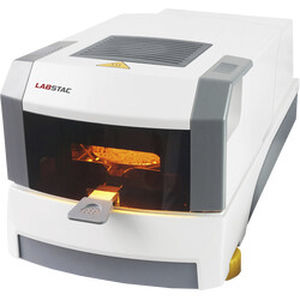

Electronic moisture balance ANA21-110C

automaticfor laboratoryfor scientific research

Product Details
Moisture Analyzer measures the amount of moisture in a substance which particularly helps in food processing. These analyzers are also commonly used in environmental, pharmaceutical, and materials science labs. We provide a variety of moisture analyzer according to applications, features and customers requirements.

• Used in Food processing, Environmental, Pharmaceutical, Laboratory, Research, Medical, Hospitals, Agriculture, Industrial

• Also known as Laboratory Moisture Analyzer, Moisture Balance, Moisture Meter, Halogen Moisture analyzer, Laboratory Moisture Balance, Laboratory moisture Meter, Laboratory Halogen Moisture analyzer

Key Features

• Halogen Heating
• Pan size: φ 100mm
• 3.7 inch touch screen
• Long distance operated

Features

• Halogen Heating
• Pan size: φ 100mm
• 3.7 inch touch screen
• Long distance operated
• Stainless steel chamber
• Easy cleaning after testing
• Temperature and time can be set
• The percentage of moisture content
• Max 230 degree heating temperature
• Automatic opens the heating chamber

Specifications
Weighing Range: 110 g
Temperature: 40°C-230°C
Operating Temperature Range: 5°C-35°C
Temperature Set: 1°C
Temperature Setting: 40°C-230°C By 1°C Step
Moisture Range: 0.00%-100.0%
Moisture Readability: 0.0001
Dry Range: 100.00%-0.00%
Dry Residual Readability: 0.0001
Pan Size: Φ100 mm
Readability: 0.001 g
Interface: Cable, RS232/RJ45/USB
Heat Source: HALOGEN LAMP
Calibration: External Calibration
Rechargeable Battery: No
Temperature Sensor: PT-100
Display: 7 inch touch panel
Operation Height: 275 mm
The Chamber Height: 35 mm
Time Setting: 1-99 min By 10 s
Dimension: 215x195x415 mm
Indicator Dimension: 200x75x135 mm
Number of History: 20
Number of Storage: 20
Power: 400 W
Balance: Output: 9 V
Machine: Output: 24 V (Dual-drive)
Power Supply: 220 V±15%, 110 V±15% / 50 Hz, 60 Hz

Caractéristiques / Spécifications techniques

• Model: ANA21-110C
• Weighing Range: 110 g
• Temperature Range: 40°C-230°C
• Operating Temperature Range: 5°C-35°C
• Temperature Set: 1°C
• Temperature Setting: 40°C-230°C By 1°C Step
• Moisture Range: 0.00%-100.0%
• Moisture Readability: 0.0001
• Dry Range: 100.00%-0.00%
• Dry Residual Readability: 0.0001
• Pan Size: Φ100 mm
• Readability: 0.001 g
• Interface: Cable, RS232/RJ45/USB
• Heat Source: HALOGEN LAMP
• Calibration: External Calibration
• Rechargeable Battery: No
• Temperature Sensor: PT-100
• Display: 7 inch touch panel
• Operation Height: 275 mm
• The Chamber Height: 35 mm
• Time Setting: 1-99 min By 10 s
• Dimension: 215x195x415 mm
• Indicator Dimension: 200x75x135 mm
• Number of History: 20
• Number of Storage: 20
• Power: 400 W
• Balance: Output: 9 V
• Machine: Output: 24 V (Dual-drive)
• Power Supply: 220 V±15%, 110 V±15% / 50 Hz, 60 Hz
