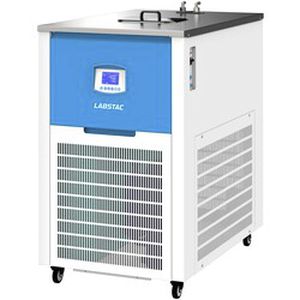

Floor-standing laboratory chiller BAC025-05

circulating

Key Features

• P.I.D temperature controller provides accurate and reliable temperature control
• Large LCD display screen and interface provides for user-friendly operation
• Preset On/Off function
• Independent circulating pump switch for easy starting/stopping the cycle

Features

• P.I.D temperature controller provides accurate and reliable temperature control
• Large LCD display screen and interface provides for user-friendly operation
• Preset On/Off function
• Independent circulating pump switch for easy starting/stopping the cycle
• Easy to set Adjustable Timer. (1 minute to 5,999 minutes)
• Maintenance-free operation with easy to clean surface
• Both heater and bath chamber are made of corrosion-resistant stainless steel
• No angle in bath chamber, easy to clean. Uniquely designed heating method can up to 80 °C
• Programming setting function with 7 periods and 9 steps for each period, which means there are 63 programmable steps in total

Specifications
Capacity: 5 L
Temperature range: -20 - 20°C
Temperature accuracy: ±2°C
Cooling capacity at 10°C: 530 W
Refrigerant: R404A
Security features: Delay, leakage, overcurrent, overvoltage
Total power: 550 W
Power requirements: AC 220 V / 50 HZ
Pump power: 30
Pump flow max.: 6 L / min
Maximum head: 9 m
Inlet/Outlet pipe diameter: Φ10 mm
Weight: 32
Liquid storage: 3.5
Noise level: ≤45
Dimension: 210Wx410Dx511H mm

Caractéristiques / spécifications techniques

• Model: BAC025-05
• Capacity: 5 L
• Temperature range: -20 - 20°C
• Temperature accuracy: ±2°C
• Cooling capacity at 10°C: 530 W
• Refrigerant: R404A
• Security features: Delay, leakage, overcurrent, overvoltage
• Total power: 550 W
• Power requirements: AC 220 V / 50 HZ
• Pump power: 30
• Pump flow max.: 6 L / min
• Maximum head: 9 m
• Inlet/Outlet pipe diameter: Φ10 mm
• Weight: 32
• Liquid storage: 3.5
• Noise level: ≤45
• Dimension: 210Wx410Dx511H mm
