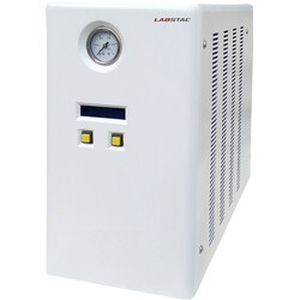

Laboratory air generator GEN13-1000

compact

Product Details
Air Generator is designed for removing hydrocarbons from the air stream and produces pure, hydrocarbon free and dry air, with a very low dew point. Long service life, easy maintenance, abrasion resistant, cost effective, performance, quick and easy servicing are some of the features which makes it convenient for the laboratory.

• Used in: Pharmaceutical, Gas Chromatography Detectors, Petrochemical, Laboratory, Medical, Research, Industries, Environmental, Clinical, Forensics.
• Also known as: Laboratory Air Generator

Key Features

• The hydrocarbon is changed into carbon dioxide and vapor in the catalyzer with Pt-Pd carrier
• Increased gas output quality
• Compact design, easy using, automatically operation, safety

Specifications
Output air concentration < 0.1PPM
Input air concentration < 100PPM
Maximum Output Pressure 0-0.6 Mpa
Maximum Flow Rate 1000 ml/min
Power Supply: 220V±10% 50~60Hz
Consumption Power 150 W
Working Temperature: 400-450°C
Environmental Temperature: 0-40°C
Humidity < 85%
Dimension 400x360x220 mm
Net Weight: 12 Kg

Caractéristiques / spécifications techniques

• Model: GEN13-1000
• Output air concentration: < 0.1PPM
• Input air concentration: < 100PPM
• Maximum Output Pressure: 0-0.6 Mpa
• Maximum Flow Rate: 1000 ml/min
• Power Supply: 220V±10% 50~60Hz
• Consumption Power: 150 W
• Working Temperature: 400-450°C
• Environmental Temperature: 0-40°C
• Humidity: < 85%
• Dimension: 400x360x220 mm
• Net Weight: 12 Kg
