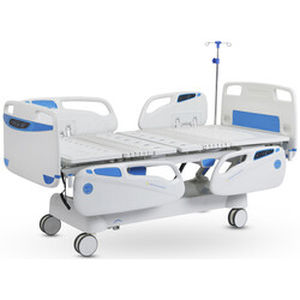

Medical bed HBD17-M1

intensive careelectricheight-adjustable

Product Details
An electric Hospital Bed is ideal if you're searching for a bed that can be completely controlled with the click of a button. Features with integrated multi-function and can fulfil the needs of various operations. Electric hospital bed allows height adjustment, as well as providing optimal height for caregivers to work with patients; raising of the head, including into Fowler's position, to allow for feeding, ease of breathing and other benefits resulting from reclining upright; and raising of the feet to help with ease of movement and blood flow.

• Used in: Medical unit, ICU
• Also known as: Medical bed, hospital bed, Hospital cot

Key Features

• Steel Framework, top class ABS & PP plastic
• Castor: 150 mm diam. Universal (central brake)
• Electronic brake & un-brake with easily operated touching switch
• Insert touching switch in the 2pcs side at the head side, for patient to adjust bed posture easily

Features

• Steel Framework, top class ABS & PP plastic
• Castor: 150 mm diam. Universal (central brake)
• Electronic brake & un-brake with easily operated touching switch
• Insert touching switch in the 2pcs side at the head side, for patient to adjust bed posture easily
• Touch switch system at the foot board, with patient lock-out system, for nursing person’s operation
• All electrically controlled, with indicator light to show the work status
• Back & leg linkage movement, back-rest and leg re-rest can up/down at the same time, supply convenient operation
• With the “reset” button to make the bed be flat from any position
• Backup battery, for emergency power failure
• Detachable head & foot board in PP plastic, can be fixed when assembled
• 4 pcs drop-down protective railing with angle indicators, controlled by gas spring
• Bed board with soft connection, make the bending of the bed board more smooth to let the patient feel more comfortable when lying in the bed
• Central brake castors, brake and un-brake controlled by electric operation
• IV pole mount bracket, at 4 corners of the bed framework

Specifications
Function: Multi
Back-rest: 0°-65°
Knee Gatch: 0°- 40°
Trendelenburg: 0 - 12°
Reverse trendelenburg: 0 - 12°
HI – LOW: 745 – 477 mm
Bed board dimension: 1940x900 mm
Safe load capacity: < 250 kg
Castor: 360° swivel castors (Dia. 150 mm), with electric brake.
Material: Powder coated steel bed frame, top class ABS & PP plastic
Standard accessory: IV pole
Net Weight: 148 kg
Overall dimension: 2240Lx1050Wx500-750 mm
Height adjustment: 535-720 mm
IV pole: Yes
Dimension: 2260Lx1100Wx535-720 mm

Caractéristiques / spécifications techniques

• Model: HBD17-M1
• Brand: Labstac
• Function: Multi
• Back-rest: 0°-65°
• Knee Gatch: 0°- 40°
• Trendelenburg: 0 - 12°
• Reverse trendelenburg: 0 - 12°
• HI – LOW: 745 – 477 mm
• Bed board dimension: 1940x900 mm
• Safe load capacity: < 250 kg
• Castor: 360° swivel castors (Dia. 150 mm), with electric brake.
• Material: Powder coated steel bed frame, top class ABS & PP plastic
• Standard accessory: IV pole
• Net Weight: 148 kg
• Overall dimension: 2240Lx1050Wx500-750 mm
• Height adjustment: 535-720 mm
• IV pole: Yes
• Dimension: 2260Lx1100Wx535-720 mm
