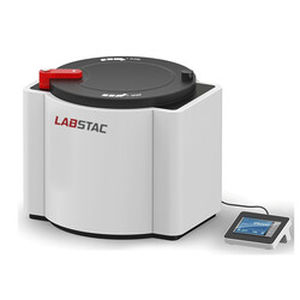

Environmental analysis digester MWD20-40

laboratoryfor the pharmaceutical industrymicrowave

Product Details
When a sudden over-pressure scenario arises, an automatic vent and self-resealing structure rapidly release pressure and reseal. Mechanism for monitoring pressure and temperature without contact. It can edit and save 255 different sorts of programmes depending on what the user needs.

• Used in Pharmaceutical Analysis, Agricultural, Environmental Analysis, Biological Sciences
• Also known as Microwave Digester, Microwave Extraction

Key Features

• Special Designed Sample Digestion Vessel.
• Contact-less Temperature and Pressure Monitoring System.
• With vessel quantity of 40, It can edit and store 255 types of programs according to user's requirements.

Specifications
Vessel Quantity: 40
Vessel Volume: 50mL
Vessel material: Inner.Imported TFM Outer.Imported PEEK Glass Fiber
Temperature Monitoring System: Contactless IR sensor
Temperature Control: Scanning control of each vessel
Temperature Control Range: 50-400 °C
Maximum Working Temperature: 250 °C
Temperature Control Accuracy: ±0.3 °C
Inner Vessel Temperature Limit: 300 °C
Pressure Testing: Contactless pressure sensor
Pressure Control range: 0-10MPa
Pressure Control Accuracy: 0.01MPa
Maximum Working Pressure: 6 MPa
Microwave Frequency: 2450Hz
Rotation Mode: 360° Continuous Rotation
Microwave Leak: <5mw/cm2
Microwave Power: 0-3000W Adjustable

Optional Accessories
Accessory Code: 7500514005
Name: Heating Blocks
Sample quantity: 20
Aperture and Hole depth: Φ 32x118mm
Temperature Control Range: Room Temperature -250°C

Technical Specifications / Features

• Special Designed Sample Digestion Vessel
• Contact-less Temperature and Pressure Monitoring System
• Vessel quantity: 40
• Can edit and store 255 types of programs
• Vessel Volume: 50mL
• Vessel material: Inner Imported TFM, Outer Imported PEEK Glass Fiber
• Temperature Monitoring: Contactless IR sensor
• Temperature Control: Scanning control of each vessel
• Temperature Control Range: 50-400 °C
• Maximum Working Temperature: 250 °C
• Temperature Control Accuracy: ±0.3 °C
• Inner Vessel Temperature Limit: 300 °C
• Pressure Testing: Contactless pressure sensor
• Pressure Control range: 0-10MPa
• Pressure Control Accuracy: 0.01MPa
• Maximum Working Pressure: 6 MPa
• Microwave Frequency: 2450Hz
• Rotation Mode: 360° Continuous Rotation
• Microwave Leak: <5mw/cm2
• Microwave Power: 0-3000W Adjustable
