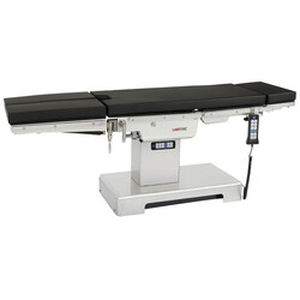

Universal operating table OPT11-110

gynecologicalcardiologyelectric

Product Overview
Labstac’s electric operation table is a cost-effective, multi-performance mobile operating table that meets the requirements of different surgeons. It features easy-to-use electronic controls. The operation table is equipped with a tabletop that rotates 180 degrees, and the chest plate, back plate, head plate, and leg plate can all be easily adjusted, allowing for the ideal positioning of patients undergoing medical imaging tests.

• Used in: Medical unit, Surgery, Operation theatre, cardiovascular, pediatric, gynecology, abdominal, gall bladder, plastic surgery and more
• Also known as: Electric surgical table, Electric OR Table, Electric operating table

Key Features

• The tabletop adopts high quality of carbon plastic plate, and it can slide, which is convenient for C arm exam and X-ray photography
• The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam
• Using electro-hydraulic working principle. Hand held controller and panel controller are available to control various movements. Self-locking function is provided to avoid false triggering
• Hydraulic system from HOERBIGER
• AC and DC can use at the same time. It has the function of auto-restoration
• One press to “A” or “V”
• Imported sealing ring
• The table support frame is made of aluminum alloy die-casting and will never rust
• The base and rails on both sides of the table are 304 stainless steel
• Electric braking device, convenient for shifting the table
• The leg plate is controlled by imported gas spring. Leg plate is split and detachable

Specifications
Table Length | 2000±100 mm
Table Width | 520±20 mm
Height Adjustment | (750~1000) ±50 mm
Tilt (left)/Tilt (Right) | ≥18°/≥18°
Trendelenburg/Rev-Trend | ≥25°/≥35°
Head board upwards | ≥50°
Head board downwards | ≥90°
Backboard upwards | ≥70°
Backboard downwards | ≥30°
Waist board lifting | 100±20 mm
Leg board upwards | ≥10°
Leg board downwards | ≥90°
Leg board outwards | ≥180°
Lumbar upper corner “Λ” | ≤150°
Lumbar lower corner “v” | ≤110°
Horizontal and longitudinal movement | 400±30 mm
Standard Accessories | A Pair of Shoulder/Waist Support, A pair of Arm Support, A pair of leg Plate, A screen
Main Voltage AC | 220V±22V, 50Hz±1Hz
Input Power VA | 400±10%

Technical Characteristics / Specifications

• Tabletop: High quality carbon plastic plate, sliding for C arm and X-ray
• Mattress: Imported artificial leather, high-density memory sponge, seamless
• Control: Electro-hydraulic, hand held and panel controller, self-locking
• Hydraulic system: HOERBIGER
• Power: AC and DC, auto-restoration
• Frame: Aluminum alloy die-casting, rustproof
• Base/Rails: 304 stainless steel
• Braking: Electric device
• Leg plate: Imported gas spring, split and detachable
• Standard accessories: Shoulder/Waist Support, Arm Support, Leg Plate, Screen
