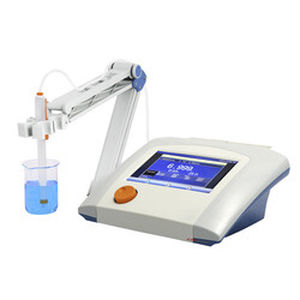

Laboratory pH meter MET21-06

benchtop

Product Details
The pH scale typically ranges from 0 to 14. According to the Nernst equation pH values are affected by temperature, hence the temperature compensation is a vital function of any pH Meter to ensure accurate pH measurement.

Specifications

• pH:
• Range: -2.000 to 20.000 pH
• Resolution: 0.1, 0.01, 0.001pH
• Accuracy: ± 0.002 pH
• Calibration Points: Up to 6
• Standard Recognition: NIST, GB, DIN buffers
• Calibration Reminder: Yes
• Slope Limit: Yes
• mV/ORP:
• Range: -2000.00 to 2000.00 mV
• Resolution: 0.1, 0.01 mV
• Accuracy: ± 0.1 mV or ± 0.03 %
• Temperature:
• Range: -5 to 130 °C
• Unit: °C
• Resolution: 0.1
• Accuracy: ± 0.1
• Measurement:
• Reading Mode: Auto Read (Fast, Medium, Slow), Timed, Continuous
• Reading Prompts: Reading, Stable, Locked
• Temp. Compensation: ATC, MTC
• Data Management:
• Data Storage: 1000 Groups
• GLP Features: Yes
• Log Management: Yes
• Inputs:
• pH Electrode: BNC(Q9)
• Temp./DO Probe: 6-pin MiniDIN
• Outputs:
• USB, RS 232: USB 2.0 flash memory device, printer, PC
• Display Options:
• Backlight: Yes
• Auto Shut-down: 1~60 min, off
• IP Rating: IP54
• Date and Time: Yes
• General:
• Power: AC Adapter, 100-240 V AC input, DC24 V output
• Dimensions: 280x280x130 mm
• Weight: 2500 g (5.51 lb)

Caractéristiques / Spécifications techniques

• Model: MET21-06
• pH measurement range: -2.000 to 20.000 pH
• pH resolution: 0.1, 0.01, 0.001pH
• pH accuracy: ± 0.002 pH
• Calibration points: Up to 6
• Standard buffer recognition: NIST, GB, DIN
• Calibration reminder: Yes
• Slope limit: Yes
• mV/ORP range: -2000.00 to 2000.00 mV
• mV/ORP resolution: 0.1, 0.01 mV
• mV/ORP accuracy: ± 0.1 mV or ± 0.03 %
• Temperature range: -5 to 130 °C
• Temperature resolution: 0.1
• Temperature accuracy: ± 0.1
• Reading modes: Auto Read (Fast, Medium, Slow), Timed, Continuous
• Reading prompts: Reading, Stable, Locked
• Temperature compensation: ATC, MTC
• Data storage: 1000 groups
• GLP features: Yes
• Log management: Yes
• pH electrode input: BNC(Q9)
• Temp./DO probe input: 6-pin MiniDIN
• Outputs: USB 2.0, RS 232 (flash memory device, printer, PC)
• Display backlight: Yes
• Auto shut-down: 1~60 min, off
• IP rating: IP54
• Date and time: Yes
• Power: AC Adapter, 100-240 V AC input, DC24 V output
• Dimensions: 280x280x130 mm
• Weight: 2500 g (5.51 lb)
