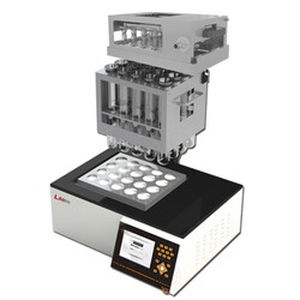

Laboratory digester KJS24-450

for the food industryfor environmental analysisfor the pharmaceutical industry

Product Overview
Graphite Digester includes globally advanced technology, features quick digestion, high efficiency and easy for use, high temperature infrared radiation heating technology and microprocessor control platform, accurate temperature control and quick temperature rise. It has two kinds of temperature rise mode: linear and curve temperature rise mode.

Applications
Widely used in such fields as food, medicine, agriculture, forestry, environmental protection, chemical engineering, biochemistry, universities, research departments, for sample digestion prior to the chemical analysis of soil, feed, plants, seeds, minerals

Also known as
Kjeldahl Digestion System

Key Features

• 20 positions enhance working efficiency rapidly.
• Corrosion-resistant design.
• Graphite block have longer life after special anti-oxidation processing and heating more uniform.
• It adopts advanced PID temperature control technology, high accuracy heating up to 400°C only 25 minutes.
• Multi-protection: Over-current protection, high temperature warning, overload protection.
• It adopts 5.7” color screen, easy for use.
• Standard configuration with waste gas collection hood.
• Temperature control model, program control, curve and linear temperature rise.

Specifications
Temperature range: Room temperature +5 - 450℃
Temperature accuracy: ±1℃
Heating method: Infrared heating and high-purity graphite conduction
Heating insulation method: unique air duct insulation technology
Digestion tube capacity: 300mL
Capacity per batch: 20pcs/batch
Power supply: 220 VAC±10% 50HZ
Power: 3600W
Net weight: 40Kg
Dimensions: 515mmX458mmX730mm

Technical Characteristics / Specifications

• Temperature range: Room temperature +5 - 450℃
• Temperature accuracy: ±1℃
• Heating method: Infrared heating and high-purity graphite conduction
• Heating insulation method: unique air duct insulation technology
• Digestion tube capacity: 300mL
• Capacity per batch: 20pcs/batch
• Power supply: 220 VAC±10% 50HZ
• Power: 3600W
• Net weight: 40Kg
• Dimensions: 515mmX458mmX730mm
