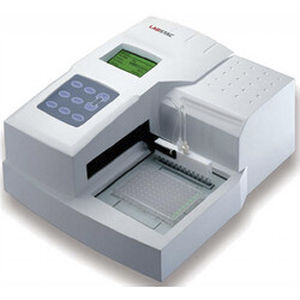

Automatic microplate washer MRW22-232

ELISA testlaboratory96-well

Product Details
Microplate Washer are laboratory instruments designed to control the procedure of washing experimental samples arranged in plate-based formats. A dependable washer is quiet easy to clean and leaves no residue, preventing contamination and reducing background.

• Used in Cell-Based Assays, Microsphere-Based Assays, ELISA
• Also known as Laboratory Microplate Washer

Key Features

• User friendly operation system with large LCD display.
• Washes flat, U and V-bottom strips and plate.
• 12-way or 8-way manifold, automatic and manual positioning.
• Large memory, up to 100 wash protocols can be programmed.

Features

• User friendly operation system with large LCD display.
• Washes flat, U and V-bottom strips and plate.
• 12-way or 8-way manifold, automatic and manual positioning.
• Large memory, up to 100 wash protocols can be programmed.
• Multi-channel, 1 or up to 3 for wash, 1 for rinse and 1 for waste.
• Plate shaking function, time and speed are adjustable.
• Two 96-well plate incubation positions (optional).
• Liquid level detection and alert function.
• Easy maintenance.

Specifications
Display: Large LCD
Interface: RS-232
Power Supply: a.c. 110V-220V, 50 Hz
Dimension: 450Lx390Wx190H mm
Plate Type: 96-48-well plate or strip
Residual Volume: <3 ul
Washing Volume: 10~3000ul/well, 1ul by step
Washing Cycle: Maximum 99 cycles
Strip Washing: 1 to 12 strips programmable
Soaking Time: 0~24 hr
Shaking Time: 0~24 hr
Memory: 99 washing protocols
Wash Channels: 5 channels, 1 or up to 3 for wash 1 for rinse and 1 for waste
Net Weight: 13 kg
Incubator Temperature (optional): 25°C, 30°C, 37°C

Technical Characteristics / Specifications

• Display: Large LCD
• Interface: RS-232
• Power Supply: a.c. 110V-220V, 50 Hz
• Dimension: 450Lx390Wx190H mm
• Plate Type: 96-48-well plate or strip
• Residual Volume: <3 ul
• Washing Volume: 10~3000ul/well, 1ul by step
• Washing Cycle: Maximum 99 cycles
• Strip Washing: 1 to 12 strips programmable
• Soaking Time: 0~24 hr
• Shaking Time: 0~24 hr
• Memory: 99 washing protocols
• Wash Channels: 5 channels, 1 or up to 3 for wash 1 for rinse and 1 for waste
• Net Weight: 13 kg
• Incubator Temperature (optional): 25°C, 30°C, 37°C
