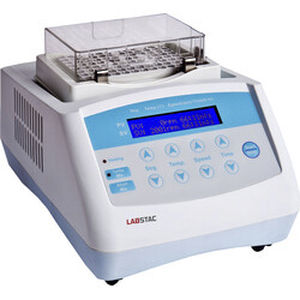

Compact thermo-shaker SHA71-1600

benchtopsample preparationlaboratory

Product Overview
The unique design principle which combines mixing and shaking with intelligent control makes its operation simpler, safe, and convenient. It is compact, highly-efficient and consists of several features including intelligent programming for easy and accurate operation results. It is primarily used to mix different micro capacity tubes, PCR plates, micro-titer plates and other laboratory equipment.

• Used in: Incubation, Cultivation, Re-suspending Pellets, Denaturing, PCR preparations, ELISA Assays, Colorimetric Assays, Enzyme, Protein Analysis
• Also known as: Thermo Shaker, Lab Shaker, Thermo Shaker Incubator, Laboratory Thermo Shaker Incubator

Key Features

• Optimized 2D mixing designed for simultaneous mixing and vortexing applications
• Pre-programmed soft keys and reliable universal holder
• Automatic imbalance detection and anti-spill technology
• Mixing in a 3-in-1 format: Plates (up to 96-well and 384-well formats), Micro-Tubes, vortexing numerous tube formats
• Custom blocks available for different experiment needs

Specifications
Speed Range: 300-1500 rpm
Temp. Control Range: 0°C~100°C
Temp. Max. Decrease: R.T. decreases 20°[email protected]. 26°C
Temp. Setting Range: 0°C ~100°C
Temp. Stability: ±0.3°C
Shaking Orbit: 3mm (horizontal)
Block Temp. Uniformity: ±0.3°C
Temp. Display Accuracy: 0.1°C
Heating Speed: ≤15 min (20°C to 100°C)
Cooling time: ≤30 min (R.T. decreases 20°C) @R.T. 26°C
Cooling speed: ≥7°C/min(100°C drop to 20°C), ≥1.2°C/min(R.T. decreases10°C)
Timing Range: 1min~99h59min or continuous
Voltage: AC 100 V~230 V, 50/60 Hz
Power: 200W
Fuse: 250 V, 3 A, φ5x20
Dimension: W.196 x D.270 x H.170mm
Net Weight: 8.8 kgs

Optional Accessories
Accessory Code | Name | Description | Max Temperature
1901805005 | Block A | 96x0.2 ml PCR plate | 100°C
1901805006 | Block B | 54x0.5 ml | 100°C
1901805007 | Block C | 35x1.5 ml | 100°C
1901805008 | Block D | 35x2.0 ml | 100°C
1901805009 | Block E | 20x0.5 ml+15x1.5 ml | 100°C
1901805010 | Block F | 24xdia.≤Φ12 mm | 100°C
1901805011 | Block G | 32x0.2 ml+25x1.5 ml | 100°C
1901805012 | Block H | 32x0.2 ml+10x0.5 ml+15x1.5 ml | 100°C
1901805013 | Block I | 103x67x30 mm (water bath block) | 100°C
1901805014 | Block J | flat block | 100°C
1901805015 | Block K | 24x5 ml (non-standard max. speed 600 rpm) | 100°C
1901805016 | Block L | 12x15 ml (non-standard max. speed 600 rpm) | 100°C
1901805017 | Block M | 6x50 ml (non-standard max. speed 600 rpm) | 100°C
1901805018 | Block N | Customized | 100°C
1901805019 | Cover A | Suit for block A ~I J |
1901805020 | Cover B | Suit for block J K L M |
1901805021 | Tube Stand A | 96x0.2 ml tube stand |
1901805022 | Tube Stand B | 24x0.5 ml tube stand |
1901805023 | Tube Stand C | 24x1.5/2.0 ml tube stand |

Technical Characteristics / Specifications

• Speed Range: 300-1500 rpm
• Temperature Control Range: 0°C~100°C
• Temperature Max. Decrease: R.T. decreases 20°[email protected]. 26°C
• Temperature Setting Range: 0°C ~100°C
• Temperature Stability: ±0.3°C
• Shaking Orbit: 3mm (horizontal)
• Block Temperature Uniformity: ±0.3°C
• Temperature Display Accuracy: 0.1°C
• Heating Speed: ≤15 min (20°C to 100°C)
• Cooling time: ≤30 min (R.T. decreases 20°C) @R.T. 26°C
• Cooling speed: ≥7°C/min(100°C drop to 20°C), ≥1.2°C/min(R.T. decreases10°C)
• Timing Range: 1min~99h59min or continuous
• Voltage: AC 100 V~230 V, 50/60 Hz
• Power: 200W
• Fuse: 250 V, 3 A, φ5x20
• Dimension: W.196 x D.270 x H.170mm
• Net Weight: 8.8 kgs
