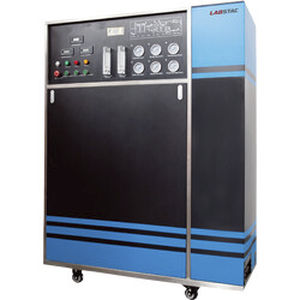

Laboratory water purification system WPS31-250

reverse osmosismicrofiltrationultraviolet

Product Overview
It meets the requirements of pure water for mass production and lab central water supply. Features like integration design, advanced PLC controlling system, easy touch screen panel, good extension, reliability and safety make it suitable for laboratory purposes.

• Used in: Glassware Washing, Autoclave Sterilizer, Humidity Chamber, Salt Spray Test Chamber, Dampening Machine
• Also known as: Laboratory Large Capacity Water Purification System

Key Features

• Integration design
• Integrating pretreatment, reverse osmosis, deionization, ultraviolet, ultrafiltration, microfiltration, 250 liters stainless steel tank and pure water supplying and circulation system together.
• Perfect control, monitor and alarm
• This series could monitor and alarm, including shortage of water, leaking, water pressure, water level, flow velocity and water quality etc.

Features

• Integration design
• Integrating pretreatment, reverse osmosis, deionization, ultraviolet, ultrafiltration, microfiltration, 250 liters stainless steel tank and pure water supplying and circulation system together.
• Perfect control, monitor and alarm
• This series could monitor and alarm, including shortage of water, leaking, water pressure, water level, flow velocity and water quality etc.
• Operate and record easily
• This series operate automatically, all the status of working has indicator light; it also could connect to the computer, then you can download all the information from the computer.
• Reliable safety
• This series would alarm, when the water quality is not qualified, also has the protection of high/low voltage, electrical overload protection and protection for leaking.
• Good extension
• BCPS 600 series pure water could be feed water of BBPS 200, BDPS 400, BLPS 100, BLPS 200 and BLPS 300 series. The quality of ultrapure water can reach to 18.2MΩ.cm, meet the requirements of PLC, IC, ICP-MS, GF-AAS, Physics, electrochemical and interface research, molecular biology and life science, animal cells and plant cell culture.

Specifications
Feed Water Requirements*:

Water Inlet
Tap water or ground water
Flow Procedure**
QZ+AC+SI+MF+RO+DI
Ion rejection rate
≥98%
Output(25°C)****
250 L/hr
DimensionLxWxH
1310x550x1750 mm
Weight
300 kg
Power Consumption (W)
3000 W
Power Supply
AC380 V, 50 Hz
Note
-
Deionized water quality:

Resistivity
≥10MΩ.cm

Technical Characteristics / Specifications

• Model: WPS31-250
• Feed Water: Tap water or ground water
• Flow Procedure: QZ+AC+SI+MF+RO+DI
• Ion rejection rate: ≥98%
• Output (25°C): 250 L/hr
• Dimensions (LxWxH): 1310x550x1750 mm
• Weight: 300 kg
• Power Consumption: 3000 W
• Power Supply: AC380 V, 50 Hz
• Deionized water resistivity: ≥10MΩ.cm
