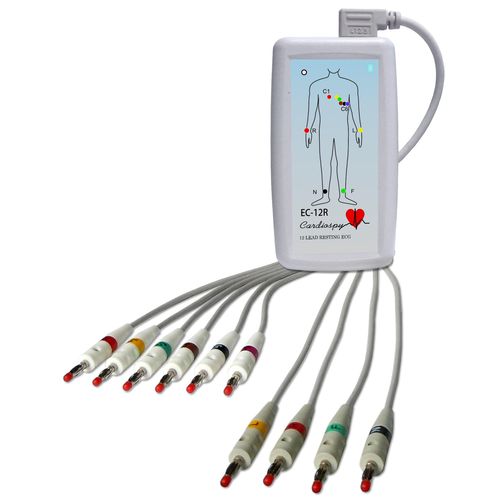

Resting electrocardiograph EC-12R
12-channel3-channel6-channel

resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
resting electrocardiograph
Add to favorites
Compare this product


Characteristics

Applications
resting
Number of channels
12-channel, 3-channel, 6-channel
Technology
computer-based
Connectivity
wireless

Description

It enables fast and high-quality ECG recording with the aid of effective baseline, noise and muscle filters. The device gives an alarm signal in case of loosened electrodes or noise. The formulation of the diagnosis is aided not only by mean ECG values and parameter tables provided, but also by the automatic expert interpretation system. It uses regular sheets of paper instead of thermal paper, providing lasting printed records as well as making printing more cost effective. The software includes a user-friendly archiving system. The system consists of: 1 pc EC-12R ECG Recorder + analysis SW + USB-02/A interface + accessories*. *The manufacturer reserves the right to change the list of accessories at any time. Product specifications Leads: I, II, II, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6, NEHB PC connection: Bluetooth Patient protection: EN 60601 (IEC-601-1), CF type Power supply / Ca be exchanged during recording! /: - 2 x 1,2 V rechargeable batteries (or 2 x 1.5 V AA alkaline battery) Dynamic interval: ±20 mV DC offszet range: ±1000 mV Frequency response:0.05 Hz … 150Hz Sampling rate:1000 Hz A/D resolution:16 bit Input impedance: ≥100 MΩ Size: 125 x 70 x 33 mm Weight: ~ 110 g
