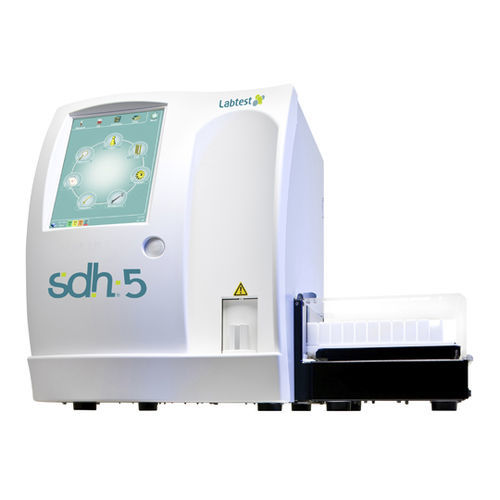

Automatic hematology analyzer SDH-5
benchtop20-parameter5-part differentiation

Add to favorites

Compare this product

Go to the Labtest Diagnostica website for more information

Characteristics

Operation: automatic
Configuration: benchtop
Number of parameters: 20-parameter
Leukocyte differentiation: 5-part differentiation
Other characteristics: with touchscreen
Throughput: 60 p/h
Sample volume: 0.11 ml
(0.00372 US fl oz)
Weight: 35 kg, 47 kg
(77.2 lb, 103.6 lb)
Length: 49.3 cm
(19.4 in)
Width: 41 cm, 67.1 cm
(16.1 in, 26.4 in)
Height: 52 cm
(20.5 in)

Description

e SDH-5 is the hematology analyzer for laboratories seeking assertiveness and reliability. Easy operation equipment, with 10.4-inch touch-screen display. Optional to Autosampler with homogenizer and automatic barcode reader. Processes 60 samples/hour, release of hemograms with 26 parameters and differential count of 5 parts for leukocytes. REAGENTS Uses 3 reagents: Diluent (20 L), Diff 5P (1 L) and Lysing (5 L); Level sensors in the reagent containers. SAMPLES Manual barcode reader (optional); Autosampler with automatic barcode reader (optional). METHODOLOGIES Impedance; Photometry for hemoglobin; ZATION SYSTEM Autosampler with homogenizer for samples. PIPETTING SYSTEM Open or closed tube mode. DATA STORAGE 100,000 results for patients with histograms, controls and calibrators. INTERFACE SYSTEMRS 232 or Ethernet; Accepts mouse, keyboard (PS2 or USB) and pen drives; USB for printer. SOFTWARE Friendly software in english; QUALITY CONTROL Results follow up by Levey-Jennings chart. 10.4 inches touch-screen liquid crystal display;
