Flow tester C390M

humiditytemperaturewater vapor permeability

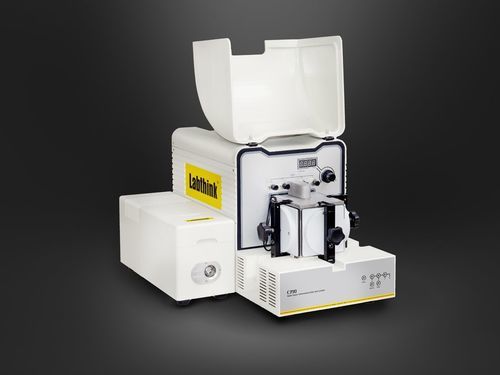

The C390M Water Vapor Transmission Rate Test System is an infrared-sensor-method instrument designed to measure the water vapor transmission rate (WVTR) of barrier materials with high, medium and low moisture barrier properties, conforming to ISO 15106-2 and ASTM F1249. It features an integrated 3-test-cell block, high-precision sensors and a computer-controlled system to regulate temperature, humidity and gas flow for sensitive and repeatable results.

Product Features

• Innovative Sensor Technology: Labthink’s new-generation infrared water vapor analytical sensor developed by Labthink Global R&D for high precision and stability.
• Mature manufacturing: 30 years' experience for reliable design, material selection and production.
• Complete product line supporting multiple test standards and methods (gravimetric, infrared, electrolytic, humidity, coulometric).
• Integrated block design with 3 test cells for high testing efficiency.
• Precise adjustment of temperature, humidity and flow rate of test gas.
• Short warm-up time; test conditions are reached quickly.
• No need for liquid cooling agents, catalysts or special gas mixtures.
• Professional and fast test modes to meet different application needs.
• Reference films available for system calibration.
• Core sensors and key parts include self-protection features.
• Equipped with internal computer (no external PC required); network connection and USB ports available.
• Supports package testing and intelligent gas-saving features to reduce test gas consumption.
• Professional, multi-level software with various report formats; Labthink exclusive DataShield™ provides secure test data/report management.
• Optional computer system compliant with China GMP and optional CFR21 PART11 support for regulated environments.

Test Principle
The specimen is mounted in a diffusion cell split into a dry chamber and a controlled-humidity chamber. Dry nitrogen sweeps the dry side; water vapor permeating through the specimen is carried by the dry nitrogen to an infrared sensor which produces electrical signals. WVTR is calculated by analyzing these signals. For package specimens the dry nitrogen flow is inside the specimen while the outside is placed in a high-humidity environment.

Test Standards

• ISO 15106-2
• ASTM F1249
• GB/T 26253-2010
• TAPPI T557
• JIS K7129
• YBB 00092003-2015

Applications

• Films: plastic films, plastic composite films, paper-plastic composite films, geomembranes, coextruded films, aluminized films, aluminum foil/composite films, glass fiber paper composite films, etc.
• Sheeting: PP, PVC, PVDC, metal foil, film and silicon wafers.
• Paper and Paper Board: tobacco packaging paper, paper-plastic composite film, etc.
• Packages: plastic, rubber, paper/plastic composite, glass and metal packages (e.g. beverage bottles, oil packages, Tetra Pak materials, vacuum bags, metal cans, cosmetic packages, toothpaste tubes, cups for yogurt, etc.).
• Extended applications: package caps, solar back-sheets, LCD monitors & films, various pipes (e.g. PPR), blister packs, aseptic wound protection films, face masks, battery plastic shells and other related packaging/industrial materials.

Technical specifications

• Test Range (standard): 0.05 ~ 40 g/(m2·d)
• Test Range (package): 0.00025 ~ 0.2 g/(pkg·d)
• Resolution: 0.001 g/(m2·d)
• Repeatability: the larger of ±0.05 and 2%
• Test Temperature: 10 ~ 55 °C ±0.2 °C
• Test Humidity: 5% ~ 90% RH ±1%, 100%
• Test Chamber: 3 test chambers
• Specimen Size: 108 mm × 108 mm
• Specimen Thickness: ≤ 3 mm
• Standard Test Area: 50 cm²
• Carrier Gas: 99.999% high-purity nitrogen (not supplied)
• Carrier Gas Pressure: ≥ 0.28 MPa / 40.6 psi
• Port Size: 1/8 inch metal tubing
• Additional functions (optional): package test (3 L max), DataShield™ data management, GMP computer system, CFR21 Part11 compliance.
