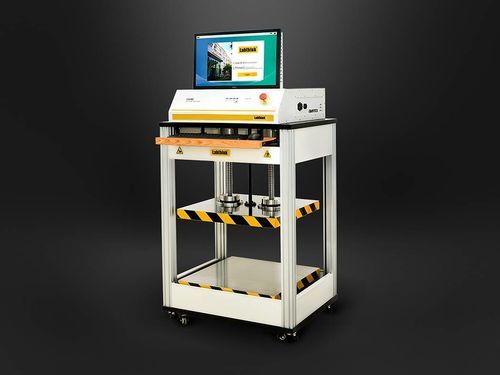

Labthink Box Compression Tester C611M is designed to measure compressive resistance, deformation and stacking capability of corrugated boxes, honeycomb boxes, hollow containers (plastic, paper), IBC tanks and other packages, supporting test monitoring and online lab data management.

Product features

• Compact integrated design with wide-range power supply for varied applications.
• Supports maximum crush (BCT), stacking test A and stacking test B modes.
• Dynamic digital display of test force, deformation and other test data.
• High-performance motor and dual-precision ball screws enabling free adjustment of test speed.
• Overload protection, maximum travel limit and error alerts for safe operation.
• High-end embedded PC control system; instrument and software integrated (no external PC required).
• Labthink data security design for reliable test data management.
• Windows-like interface; operation via keyboard and mouse.
• USB ports and dual network ports for data transmission; GMP compliance optional.
• Optional DataShield™ for secure data management and information system integration.

Test standards

• ISO 12048
• ASTM D642
• ASTM D4169
• TAPPI T804
• JIS Z0212
• GB/T 16491
• GB/T 4857.4
• QB/T 1048-2004

Applications

• Basic applications

  • Maximum crush (BCT) test for corrugated and honeycomb cartons.
  • Stacking test A: measure deformation during stacking.
  • Stacking test B: verify deformation qualification under a specified force over time.
• Extended applications

  • Same tests applied to hollow containers (plastic and paper tanks).
  • Stacking A and B for hollow containers to measure and qualify deformation under load.

Characteristics / Technical specifications

• Model: C611M.
• Load cell capacity: 9 kN (3 pcs).
• Accuracy: indicated value ±1% (10%–100% of load cell capacity); ±0.1% FS (0%–10%).
• Force resolution: 1 N.
• Deformation resolution: 0.1 mm.
• Test speed: 0–200 mm/min (any integer within range).
• Speed accuracy: indicated value ±2%.
• Stroke: 450 mm.
• Sample height: 0–600 mm.
• Test space (L×W×H): 0.8 m × 0.8 m × 0.61 m.
• Instrument dimensions (L×W×H): 0.85 m × 1.01 m × 1.66 m.
• Power supply: AC220V ±10% 50Hz / AC120V ±10% 60Hz.
• Net weight: 245 kg.
• Standard configuration: instrument, monitor, mouse, keyboard, 150 mm platen (1 pc).
• Optional parts: auxiliary measuring device, GMP system, DataShield™.
