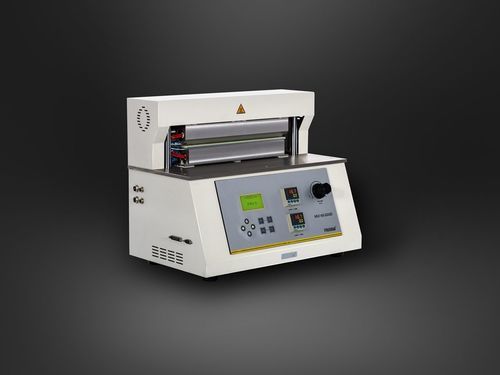

Control tester HST-H3

temperatureheat seallaboratory

Overview
The HST-H3 is a laboratory heat seal tester for determining heat seal temperature, dwell time and sealing pressure of composite films to define production parameters. It features dedicated heat-sealing jaws, microcomputer control and interfaces for data export and remote operation.

Key product features

• Digital P.I.D. temperature control for rapid, stable heating with minimal fluctuation.
• Wide control ranges for temperature, pressure and time to accommodate diverse test conditions.
• Manual or pedal operation with anti-scald design for safe use in production labs.
• Microcomputer control with LCD and PVC operation panel; menu-driven interface.
• Professional software and RS232 interface for remote control, data saving, export and printing.

Design & precision

• Aluminum-encapsulated sealing jaws for uniform heat distribution across the sealing surface.
• Cylinder-controlled jaws and dual underneath gas cylinders for even and stable sealing pressure.
• Quick-release heating tube joints for fast replacement and maintenance.

Advanced options

• Independent temperature control for upper and lower jaws to test multiple condition combinations.
• Extended sealing surface to process larger or several specimens simultaneously.
• Optional professional software, communication cable, micro-printer and printer cable.

Test principle
Preset temperature, pressure and dwell time; place specimen between upper and lower jaws and start. Sealing cycle is completed automatically under controlled conditions.

Test standards

• ASTM F2029
• QB/T 2358
• YBB 00122003

Applications

• Basic: Smooth-surface films — plastic films, plastic-plastic composite films, paper-plastic composites, coextruded films, aluminized films, aluminium foil composites. Sealing surface smooth; width customizable.
• Decorative/patterned films: Plastic and composite films with decorative surfaces; sealing jaw surface can be customized.
• Extended (custom): Customized jaws/moulds for items such as jelly-cup lids (round upper jaw with matching lower mould), sealing ends of flexible plastic tubes, and other special packaging forms.

Configurations & options

• Standard: instrument and pedal switch.
• Optional: professional software, communication cable, micro-printer and printer cable.
• Note: Gas supply port is Ф6 mm PU tubing; gas supply must be provided by the customer (not included).

Technical specifications

• Model: HST-H3
• Sealing temperature: Room temperature ~ 250°C
• Temperature accuracy: ±0.2°C
• Dwell time: 0.5 ~ 999.9 s
• Sealing pressure: 0.05 MPa ~ 0.7 MPa
• Sealing area: 330 mm × 10 mm (customizable)
• Heating mode: single or double heating surfaces
• Gas supply pressure: 0.5 MPa ~ 0.7 MPa (supply not included)
• Port size: Ф6 mm PU tubing
• Instrument dimensions: 536 mm (L) × 335 mm (W) × 413 mm (H)
• Power supply: 220VAC 50Hz / 120VAC 60Hz
• Net weight: 43 Kg
