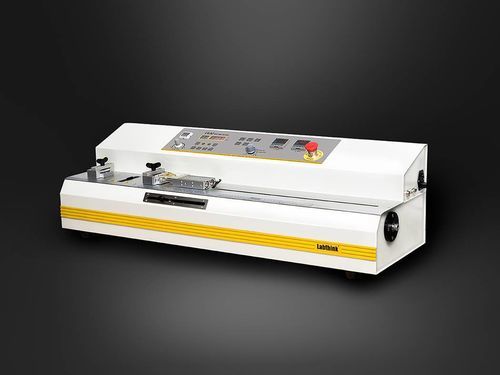

Control tester C632B

heat seallaboratoryfor the food industry

C632B Hot Tack Tester is designed to measure hot tack and heat-seal performance of plastic films, laminated films and other packaging materials, and to perform peel and tensile-at-break tests for adhesives, tapes, films, paper and other flexible materials.

Product features

• Multiple test modes in one instrument: hot tack, heat seal, peel and tensile tests.
• Digital P.I.D. temperature control for rapid attainment of set temperature with minimal fluctuation.
• Four force ranges available (standard 30 N; optional 50 N, 100 N, 200 N) with 0.01 N resolution and six test speeds to meet varied requirements.
• Complies with test speed requirements specified in GB/T 34445-2017.

Design & automatic sampling

• Automatic sampling for hot tack testing to simplify operation and improve data uniformity.
• Optional pneumatic sample clamping system.
• Automatic zeroing, error alert, overload protection and stroke protection for safe operation.
• Start manually or via pedal switch; anti-scald design for operator safety.
• Key components sourced from established manufacturers for reliable performance.

Operation & data handling

• Tests can be performed on the instrument or via dedicated software.
• Instrument can operate standalone without a computer; test data visible on the device.
• Data I/O ports provided for export and integration.

Test standards

• GB/T 34445
• ASTM F1921
• ASTM F2029
• QB/T 2358
• YBB 00122003

Applications

• Basic applications
  • Hot tack performance — plastic films, sheets and composite films (e.g. PE, PP, PET) used in packaging for food, pharmaceuticals and consumer goods.
  • Heat seal performance — plastic films, sheets and composite films.
  • Peel strength — adhesives and adhesive tapes.
  • Tensile strength — tensile tests of various films, sheets and composite films.
• Extended applications
  • Medical adhesives — peel and tensile tests for medical tapes and dressings.
  • Textiles, nonwovens and woven bags — peel and tensile strength tests.
  • Adhesive tapes — low-speed unwind/peel tests.
  • Protection films — peel and tensile tests.
  • Magnetic cards — peel tests of films and cards.
  • Bottle caps — opening-force tests for aluminum-plastic combination caps.

Technical specifications

• Model: C632B
• Load cell capacity: 30 N (standard); optional 50 N, 100 N, 200 N.
• Force accuracy: Indicated value ±1% (10%–100% of load cell capacity); ±0.1%FS (0%–10%).
• Force resolution: 0.01 N.
• Test speeds: 150, 200, 300, 500 mm/min (hot tack: 1500 mm/min, 2000 mm/min).
• Specimen width: 15 mm, 25 mm or 25.4 mm.
• Stroke: 500 mm.
• Heat seal temperature: Room temperature ~ 250°C.
• Temperature variation: ±0.2°C.
• Temperature accuracy: ±0.5°C (single-point calibration).
• Dwell time (heat seal & hot tack): 0.1 ~ 999.9 s.
• Sealing pressure: 0.05 MPa ~ 0.7 MPa.
• Sealing area: 100 mm × 5 mm. Sealing jaws: double (one silicone rubber).
• Gas supply: Air (not included). Gas supply pressure: 0.7 MPa (101.5 psi). Port size: Φ4 mm PU tubing.
• Instrument dimension: 1120 mm (L) × 380 mm (W) × 330 mm (H).
• Power supply: 220 VAC ±10% 50 Hz / 120 VAC ±10% 60 Hz.
• Net weight: 45 kg.
• Standard configurations: instrument, manual clamp, pedal switch, sampling plate, calibration support, Φ4 mm PU tubing (2 m).
• Optional parts: computer, professional software, pneumatic sample grips, air compressor.
