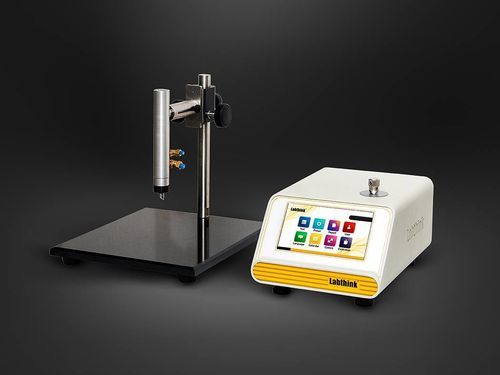

Container leak tester C660Mfor packagingblisterfor seal integrity
Add to favorites
Compare this product
Characteristics
- Applications
- for the pharmaceutical industry, for packaging, blister, for bags, for the food industry, for aerosol cans, for containers, for seal integrity
- Type
- high-pressure, pneumatic
- Configuration
- benchtop
- Other characteristics
- USB, automatic, digital, with touchscreen, color display, high-performance, with flow measurement system, with gas flow sensor
Description
The C660M Leak and Seal Strength Tester is a versatile high-performance instrument for quantitative evaluation of seal strength, seal integrity and burst-pressure leak performance of flexible packages, aseptic packages, tamper-evident closures, flexible tubes, caps and related materials.
Product Features
Basic & Extended Applications
Test Standards
Caractéristiques / Spécifications techniques
Product Features
- Multiple test modes using a positive-pressure method: burst test, creep test, creep-to-failure test and pressure-retaining test.
- Dual test methods available: restrained (restraint) and unrestrained distension.
- Real-time display of test curves and automatic statistical processing of test data for accuracy and traceability.
- Customizable non-standard testing ranges to suit diverse seal-strength applications.
- Main components supplied by established global manufacturers to ensure stable long-term performance.
- Innovative real-time monitoring of gas inlet flow for precise burst-pressure control and consistent gas inlet under high pressure, improving repeatability.
- Patented intelligent touch operating system with industrial-grade touchscreen, one-button operation, Chinese and English interfaces, remote upgrade capability, automatic data storage with power-failure memory and capacity for up to 1,200 test records.
- Multi-level user management with password-protected login; optional micro-printer and USB ports for data export; optional GMP compliance; supports Labthink DataShield™ for data management and instrument-networking (optional).
Basic & Extended Applications
- Plastic composite bags: evaluates compression resistance and sealing performance of plastic films, aluminum films, paper-plastic and aluminum-plastic composites for reliable leak and seal detection.
- Flexible tubes: suitable for tubes used in daily-chemical, cosmetics, pharmaceutical and food products (toothpaste, creams, etc.) for seal integrity and pressure control testing.
- Creep testing: long-term pressure-holding and deformation monitoring of packaging bags and boxes.
- Creep-to-failure testing: failure-pressure analysis and professional burst-pressure leak testing for packaging validation.
- Burst tests of blister packs, aerosol valve testing, three-sided seal materials and pilfer-proof/tamper-evident closures for food, beverage and industrial packaging verification.
- High-pressure testing: supports an optional maximum test pressure of 1.6 MPa for demanding packaging materials.
Test Standards
- ISO 11607-1, ISO 11607-2, GB/T 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002
Caractéristiques / Spécifications techniques
- Test range: 0 ~ 600 KPa (0 ~ 87.0 psi) standard; optional 0 ~ 1.6 MPa (0 ~ 232.1 psi).
- Resolution: 0.1 KPa / 0.01 psi.
- Pressure accuracy: ±0.25% FS.
- Gas injection head: Φ10 mm (standard); optional Φ4 mm, Φ1.6 mm.
- Gas flow rate: 0.01 ~ 10 L/min.
- Pressure retaining time: 0.1 s ~ 999,999.9 s.
- Gas supply: air (customers provide gas supply).
- Gas supply pressure: 0.6 MPa ~ 0.7 MPa (87 psi ~ 101 psi).
- Port size: Φ8 mm PU tubing.
- Instrument dimension: 334 mm (L) x 230 mm (W) x 200 mm (H).
- Test frame size: 305 mm (L) x 356 mm (W) x 338 mm (H).
- Power supply: 220 VAC ±10% 50 Hz or 120 VAC ±10% 60 Hz.
- Net weight: Instrument 8 kg; Pedestal 16 kg.
- Standard configurations: Instrument, test frame, sealing gasket, Φ8 mm PU tubing (2 m).
- Optional parts: micro-printer, professional software, communication cable, test fixtures for extended applications, air compressor, GMP system, DataShield™.
