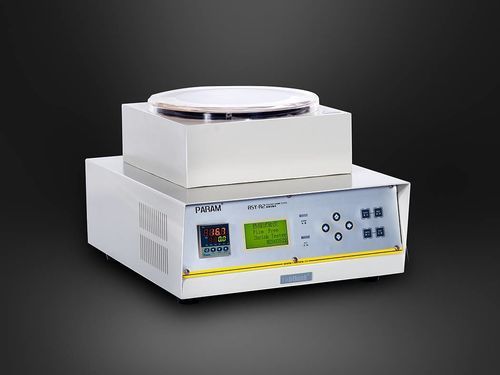

Control tester RSY-R2

temperaturelaboratoryfor the food industry

The RSY-R2 Film Shrink Tester is designed to determine heat-shrinking performance and dimensional stability of films, heat-shrinkable tubes and rigid PVC films in a fluid medium at controlled temperatures. It delivers a stable fluid-heated test environment with precise PID temperature control, automatic timing and microcomputer management for repeatable, accurate results.

Professional technology

• Digital P.I.D. temperature control for rapid attainment of setpoint without fluctuation
• Fluid-medium heating to ensure uniform and stable test conditions
• Automatic timer function to secure consistency and accuracy of test data
• Microcomputer control with LCD, PVC operation panel and menu interface for controlled workflows
• Standard clamp wire-mesh support for reliable specimen mounting

Standards

• GB/T 13519
• ASTM D2732

Applications

• Films
  Used to evaluate heat-shrink performance of various packaging films in a fluid medium at different temperatures, including PE shrink films for liquor, mineral water and beverage packages, as well as PVC (rigid), POF, OPS and PET for diverse packaging applications.

Configurations

• Standard configurations
  Instrument; 5 sets of clamp wire meshes; 3 clamp wire-mesh supports
• Optional parts
  Additional clamp wire meshes and clamp wire-mesh supports

Characteristics / Technical specifications

• Model: RSY-R2
• Specimen size: ≤140 mm x 140 mm
• Temperature range: Room temperature ~ 200°C
• Temperature accuracy: ±0.3°C
• Power supply: 220 VAC 50Hz / 120 VAC 60Hz
• Instrument dimensions: 440 mm (L) x 370 mm (W) x 310 mm (H)
• Net weight: 24 kg
