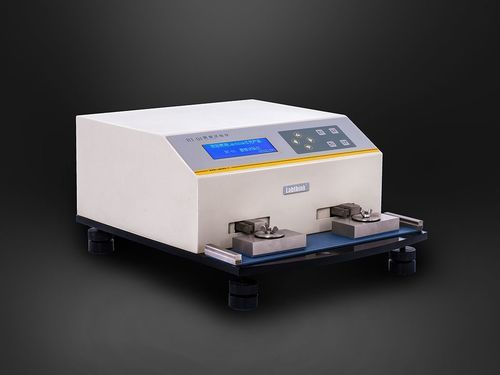

Control tester RT-01

frictionhardnessmovement

The RT-01 Ink Rub Tester is designed for abrasion resistance testing of surface coating layers of printed materials, including ink layers and photosensitive (PS) coatings. It identifies abrasion failures, ink detachment and insufficient coating hardness.

Features

• 4 test modes: dry rub, wet rub, wet transfer and wet smear; 4 selectable test speeds: 21, 42, 85, 106 cpm.
• Dual stations with arc reciprocating movement allow simultaneous testing of identical or distinct specimens.
• Power-failure memory and audible buzzer for safe operation.
• Microcomputer control with PVC operation panel, LCD and menu interface for easy operation and data viewing.

Testing Standards

• ASTM D5264
• TAPPI T830

Testing Applications

• Paper printing materials
  Assess abrasion resistance of ink layers and analyze failures such as poor abrasion resistance and ink detachment.
• Photosensitive coating layers
  Evaluate abrasion resistance of PS coatings and investigate issues like reduced printing force on PS plates.

Configurations

• Standard: Instrument, 8.9 N (2 lb) test block, 17.8 N (4 lb) test block and rubber cushion.
• Optional: Customized test block.

Characteristics / Technical specifications

• Rub pressure: 8.9 N (2 lb); 17.8 N (4 lb)
• Rub speed: 21, 42, 85, 106 cpm
• Rub mode: Arc reciprocating movement
• Rub times: 0 ~ 999999
• Number of specimens: 1 ~ 2
• Power supply: 220 VAC 50 Hz / 120 VAC 60 Hz
• Instrument dimension: 485 mm (L) x 390 mm (W) x 230 mm (H)
• Net weight: 40 kg
