Test software Datashield

data managementreportingmonitoring

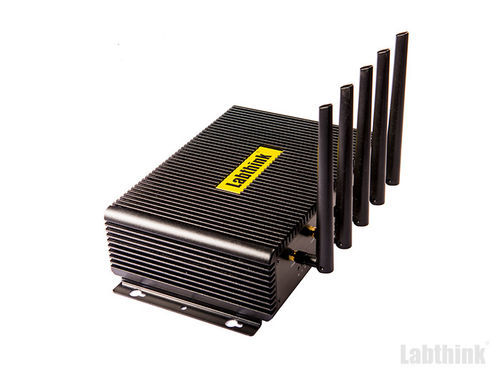

Datashield is a test data management system for industrial instruments that centralizes collection, secure storage and formatted reporting of wireless test data. The solution comprises a server appliance and client software to collect, monitor, export and back up measurement data, supporting Zigbee and Wi‑Fi connectivity and encrypted transmission to protect data integrity.

System features

• Server system software: free installation and simplified maintenance
• Client software compatible with Windows XP, 7, 8, 8.1 and 10
• Supports up to 10 concurrent client connections
• Zigbee self‑adaptive network for wireless data upload without dedicated LAN; low power and reduced emissions
• Wi‑Fi extension for access to customer LAN via IP address
• Clear field instrument result display and ability to export multiple test records to a single EXCEL file
• Real‑time monitoring of hardware storage usage with data export, backup and automatic deletion functions
• Monthly aggregation and counting of instrument service data
• Seamless end‑to‑end wireless transmission of test data
• Data encryption for secure transfer and storage
• Server designed for stability, dust/water resistance and electromagnetic interference protection
• Server runs Windows OS for straightforward operation

Client system requirements

• Operating system: Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10
• Screen resolution: 1280 × 1024 or higher
• Reading tools: Adobe Reader (PDF reports), Microsoft Excel 2010 or later (EXCEL data)
• Microsoft .NET Framework: version 4.0 or higher

Technical specifications

• Processor: Intel(R) Celeron(R) CPU J1900 @ 1.99GHz
• Internal memory (RAM): 2.00 GB (1.90 GB available)
• Hard disk: 500 GB × 1
• Network card: 1000M × 2
• Wi‑Fi: IEEE 802.11b/g/n × 1
• Zigbee (modules): IEEE 802.15.4 × 4
• Wired network transmission rate: determined by customer's network devices
• Supported instruments (total): 20
• Supported clients: 10
• Zigbee transmission distance: 50 m (no obstacles, ideal environment); relays can be added for complex environments
• Zigbee transmission rate: 40 kb/s
• Zigbee supported instruments: 10

Standard configuration and options

• Standard: instrument, special U‑disk
• Optional: high‑gain antenna, special U‑disk, wireless router, Zigbee relay
